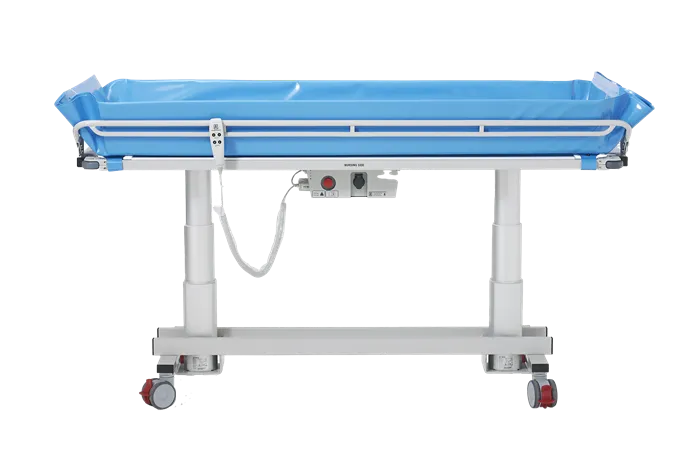

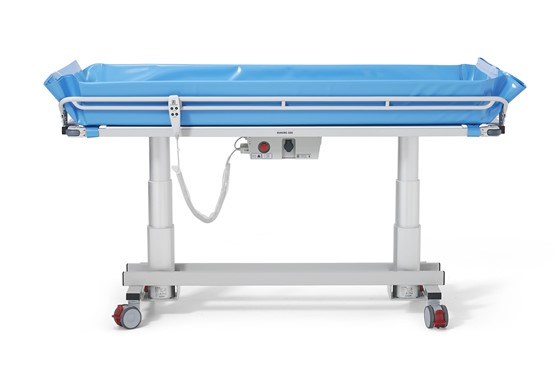

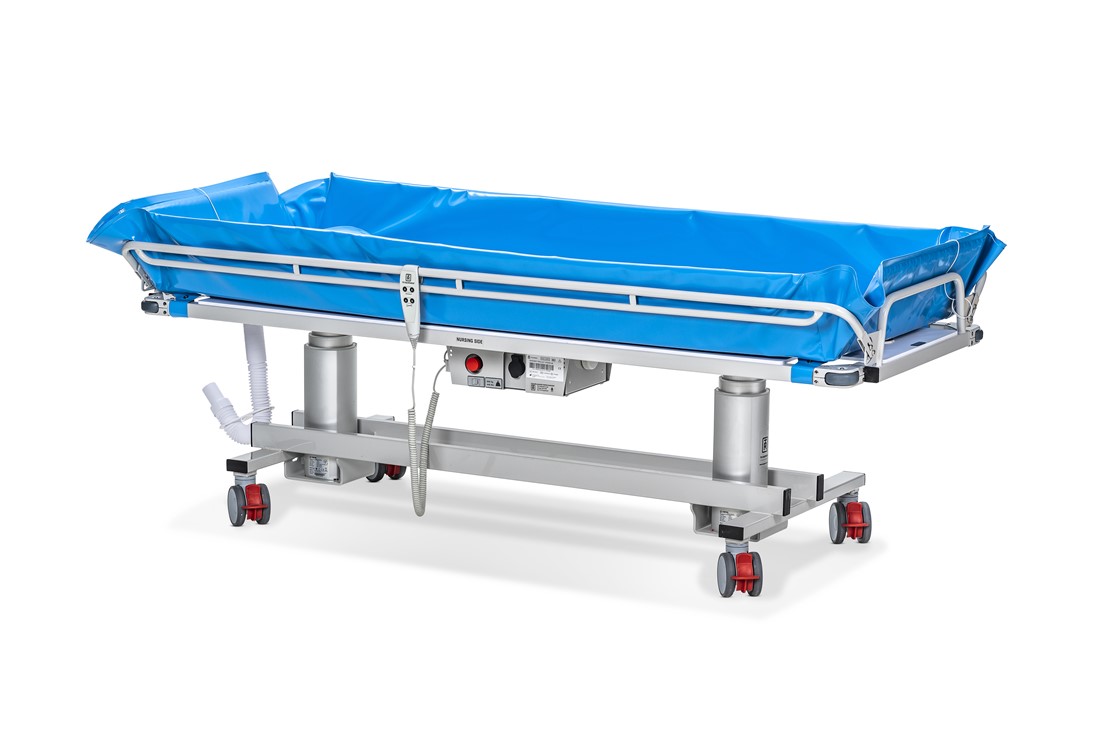

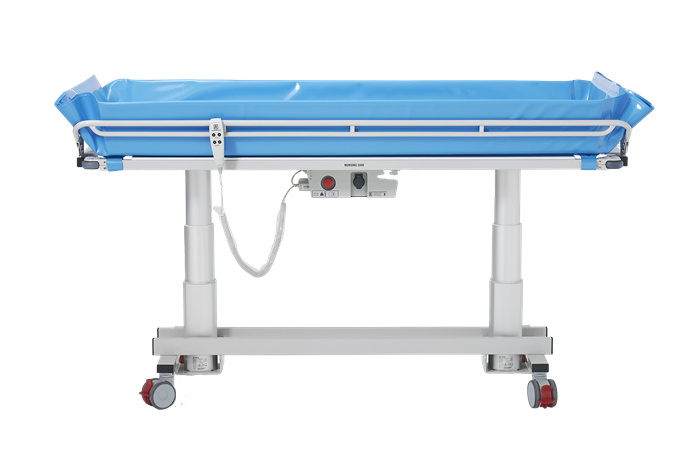

SHOWER TROLLEY TR 3200

Multi-tasking battery operated shower trolley with endless application possibilities

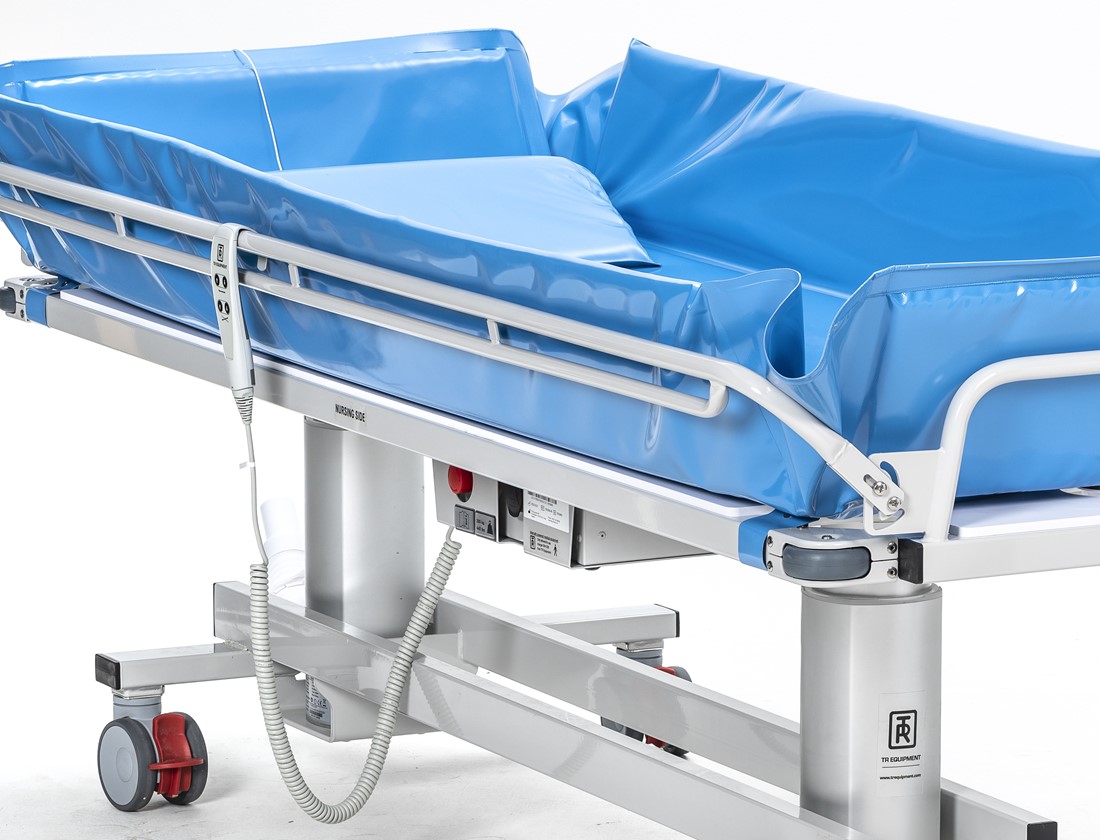

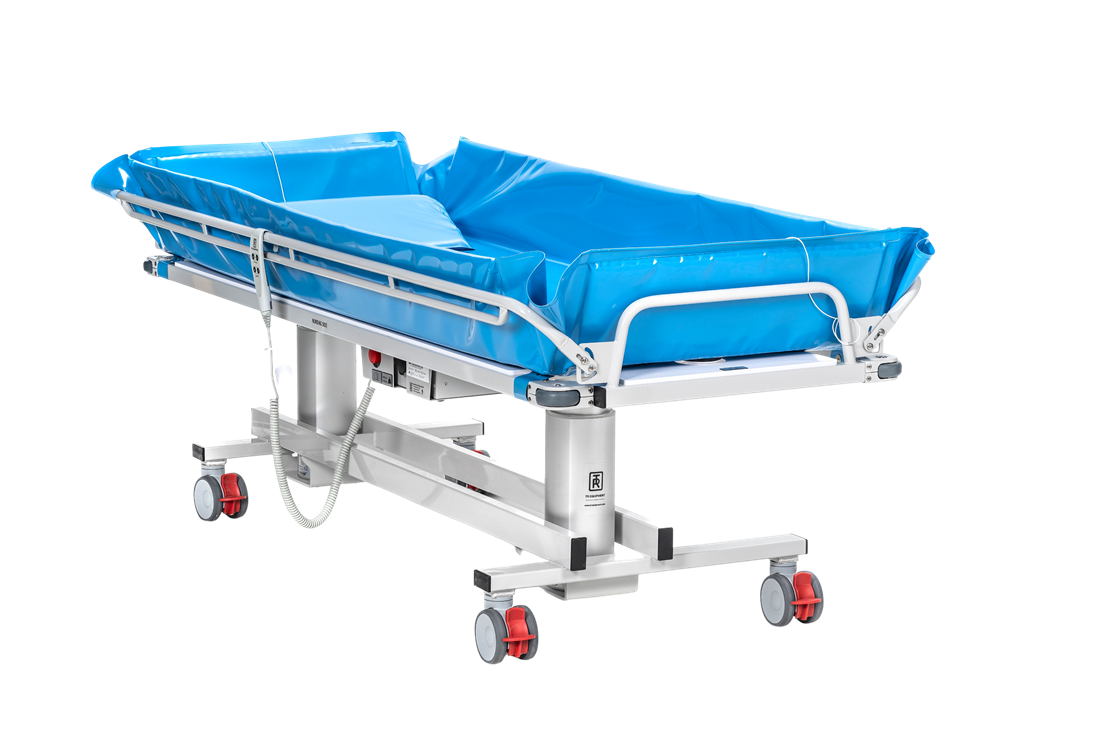

The TR 3200 shower trolley (max patient weight 230 kg/500Ibs) is unique with its side dual mounted columns, allow­ing the trolley stretcher to overlap the bed further for a safe and easy resident transfer.

The trolley drains at both ends allowing the person to be positioned in either direction, an invaluable feature for the caregiver.

The TR 3200 comes in two sizes, and both versions are available with on board battery solution or with removeable rechargeable batteries.


All TR 3200 models comes delivered ready for use with a MagCode charger, mattress, head pillow, 4 braked castors and 1 m flexible drainage hose.

See product documents

Features

Standard Equipment

Standard Equipment

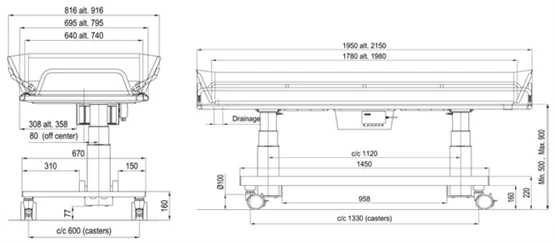

Measurements (mm)

TR3200 mm

Product Measurement document available for download at the bottom of the page.

Standard Equipment

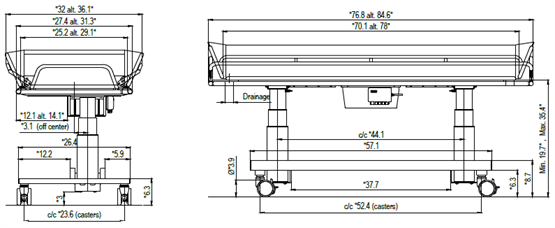

Measurements (inch)

TR3200 inch

Product Measurement document available for download at the bottom of the page.

Standard Equipment

Maximum patient weight of 230 Kg / 500 lbs


Standard Equipment

Battery solution

On board, high capacity, rechargable batteries (24 V, 14 Ah) to be charged via main supply.

Magnetic battery charger connection for safety and ease of use.


Standard Equipment

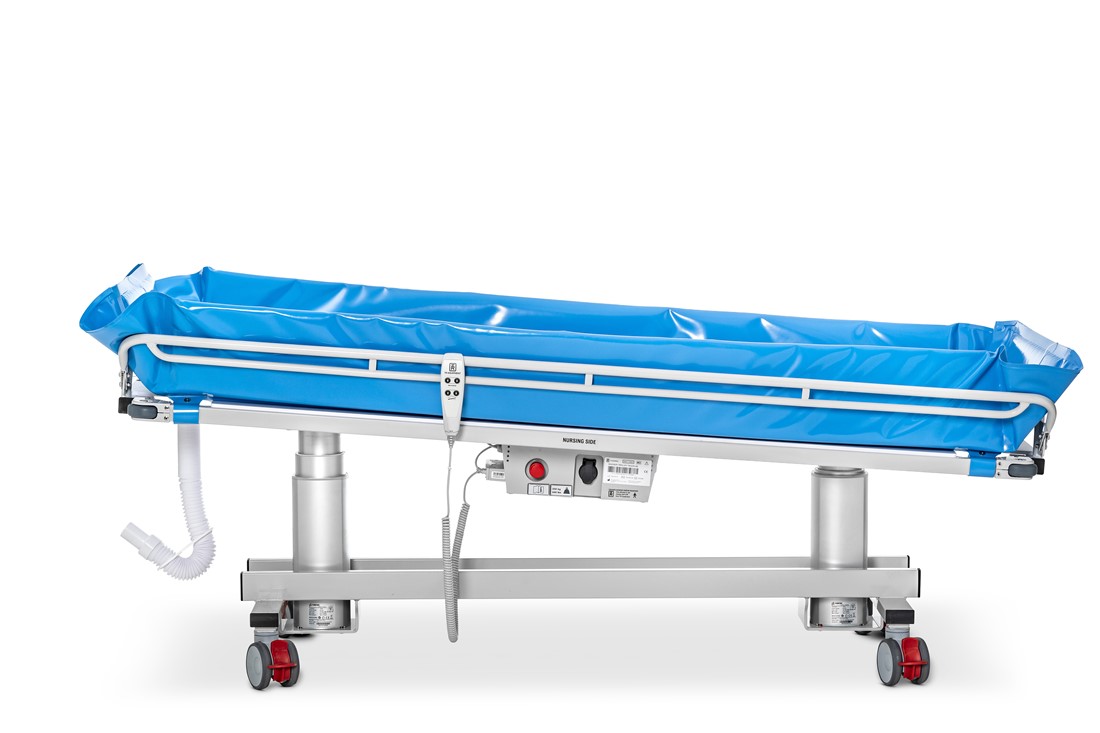

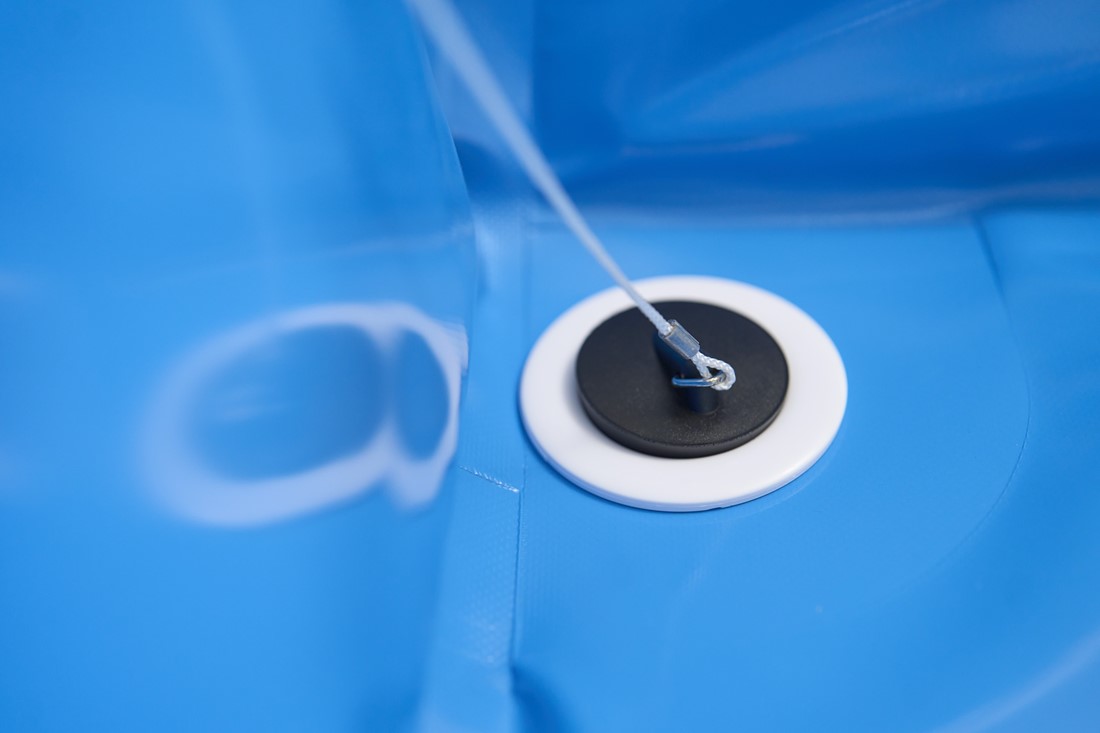

Dual drainage offers easy change of designated head end


Standard Equipment

Floor clearance at 160 mm to enable floor lift transfers



Standard Equipment

The chassis and sub-frames are made of powder coated stainless steel

Proven choice of durable high-quality material guarantees a low cost of ownership.

Standard Equipment

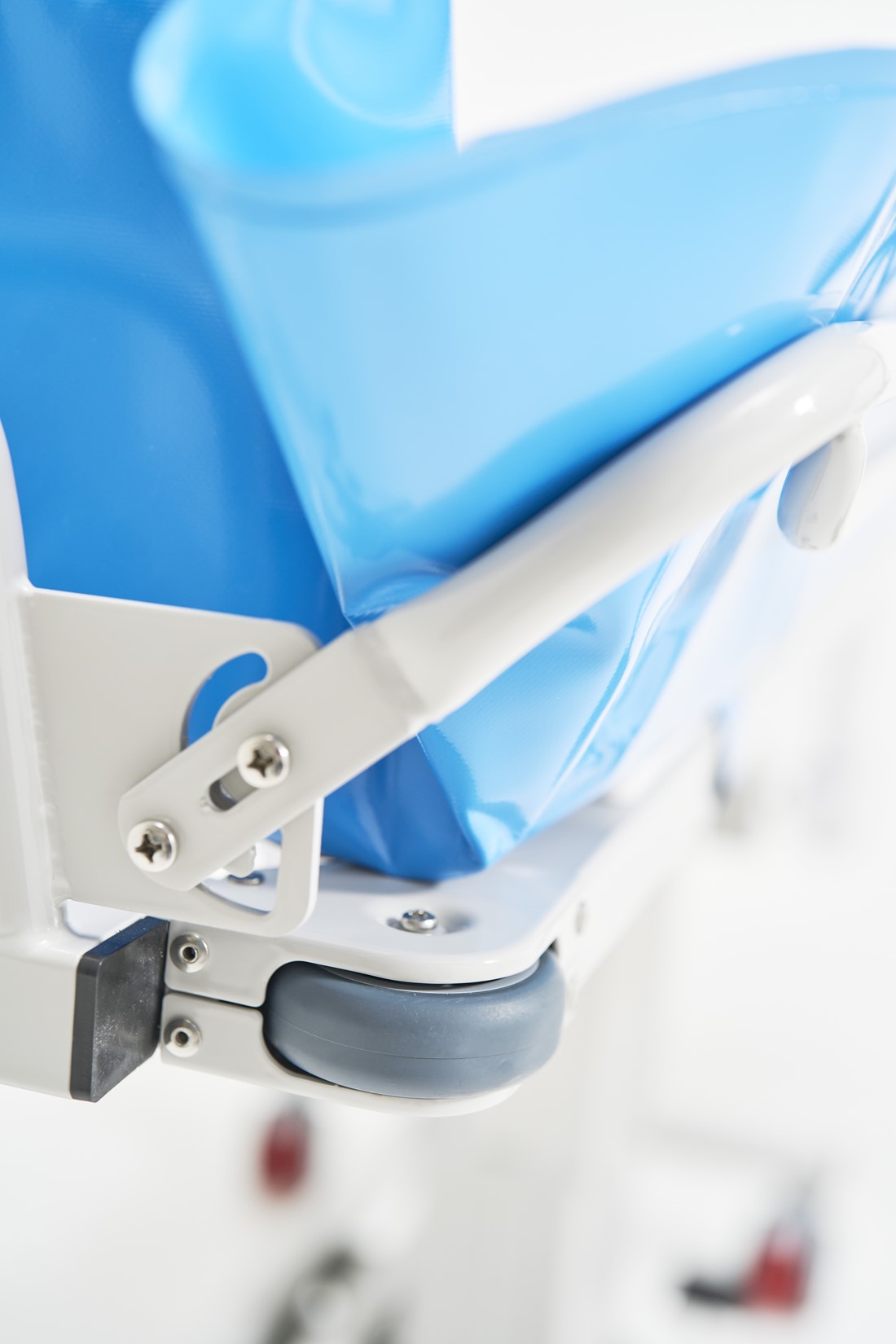

Bumper wheel protection

The stretcher has rubber bumper wheels on all four corners to protect walls and doorways.


Standard Equipment

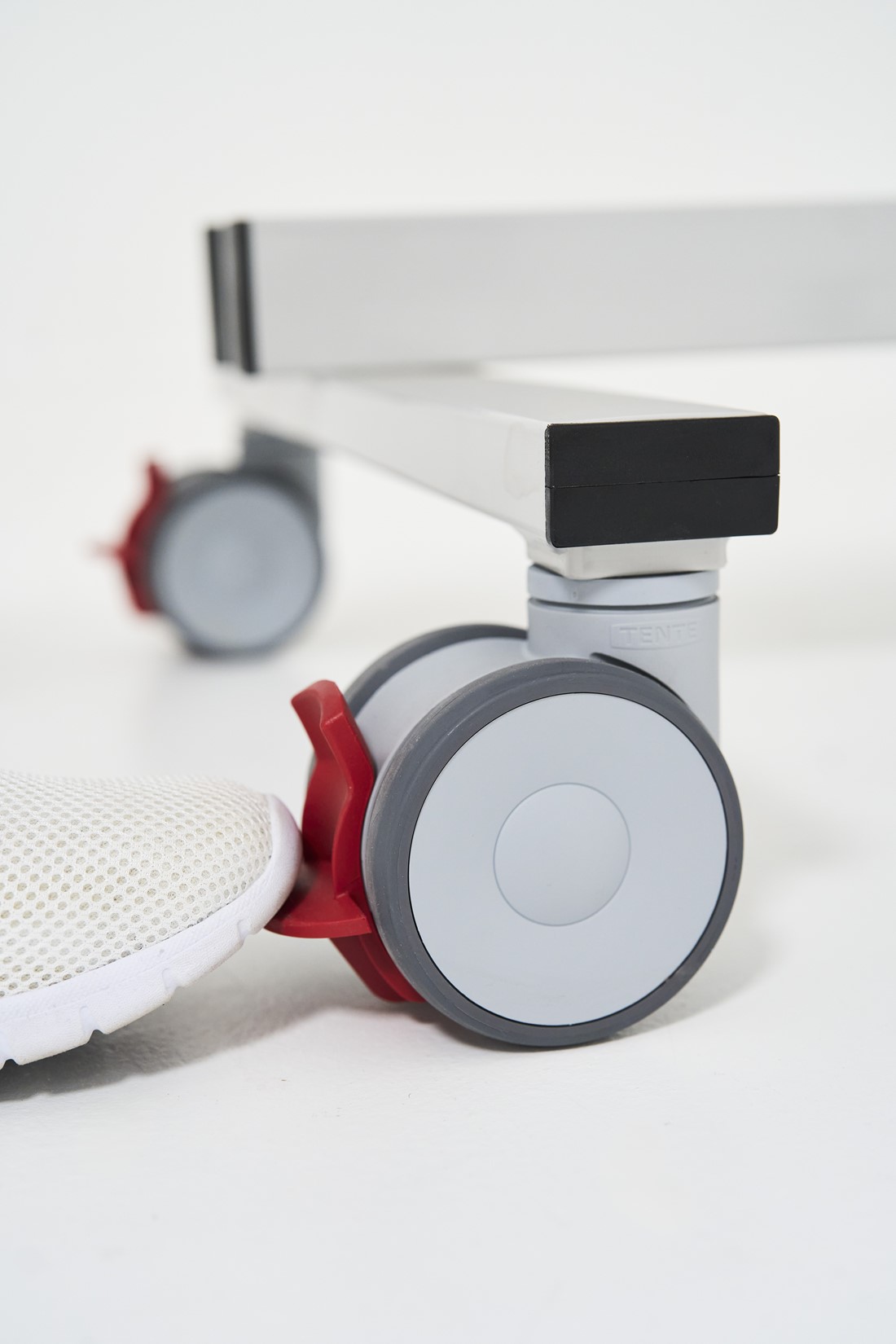

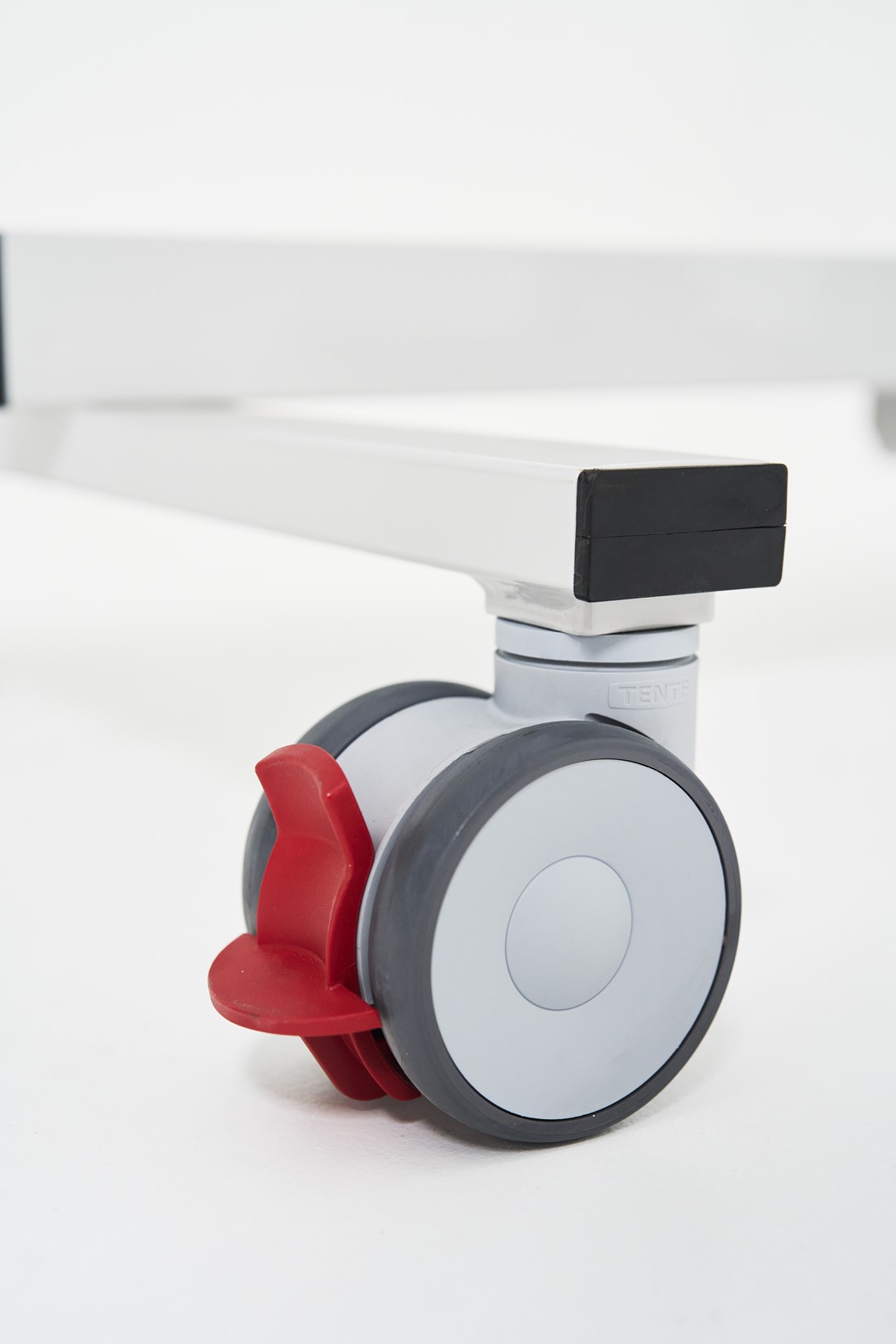

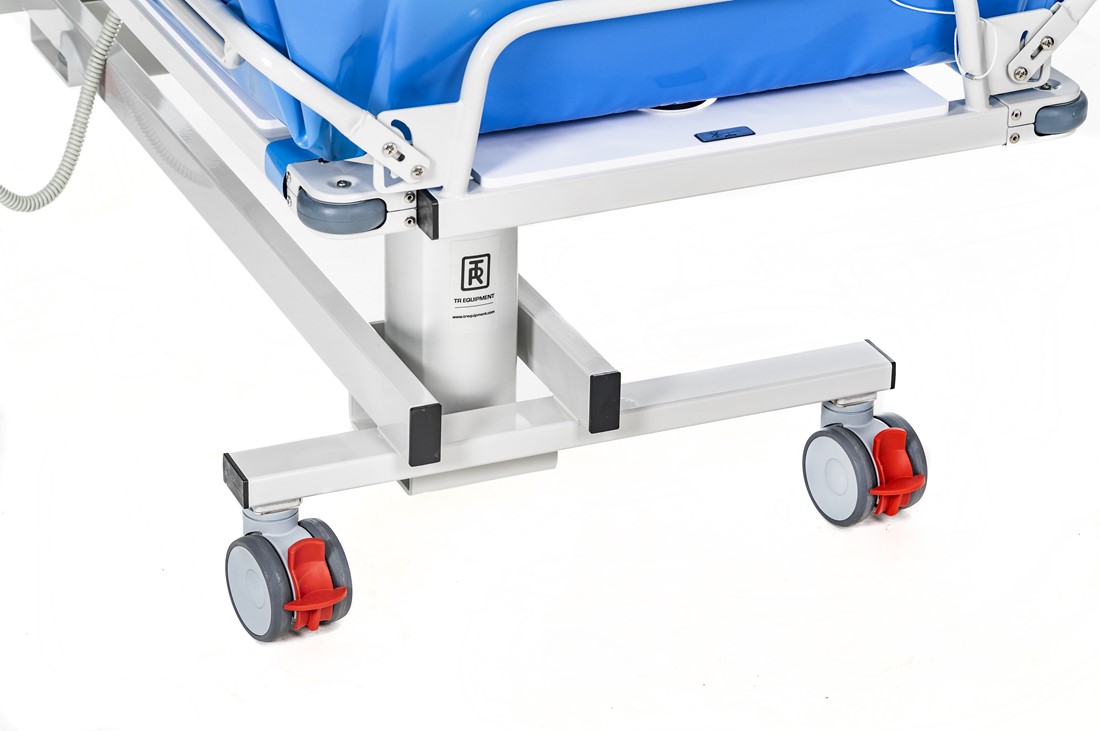

Four 100 mm braked twin castors as standard

Straight Steering castors available as an option

Standard Equipment

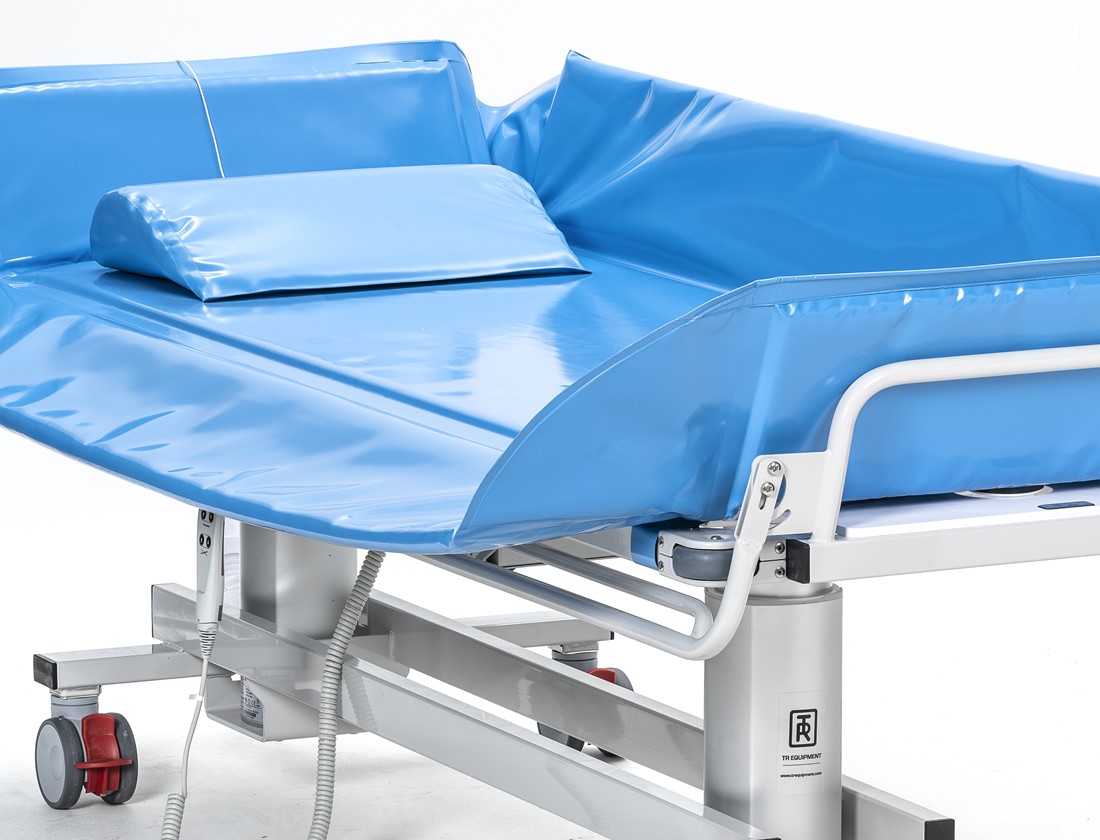

Mattress and head pillow in blue color

Well proven high quality durable mattress designed to last for years made in Flame retardant PVC material.
Easily removable from the shower trolley.

Standard Equipment

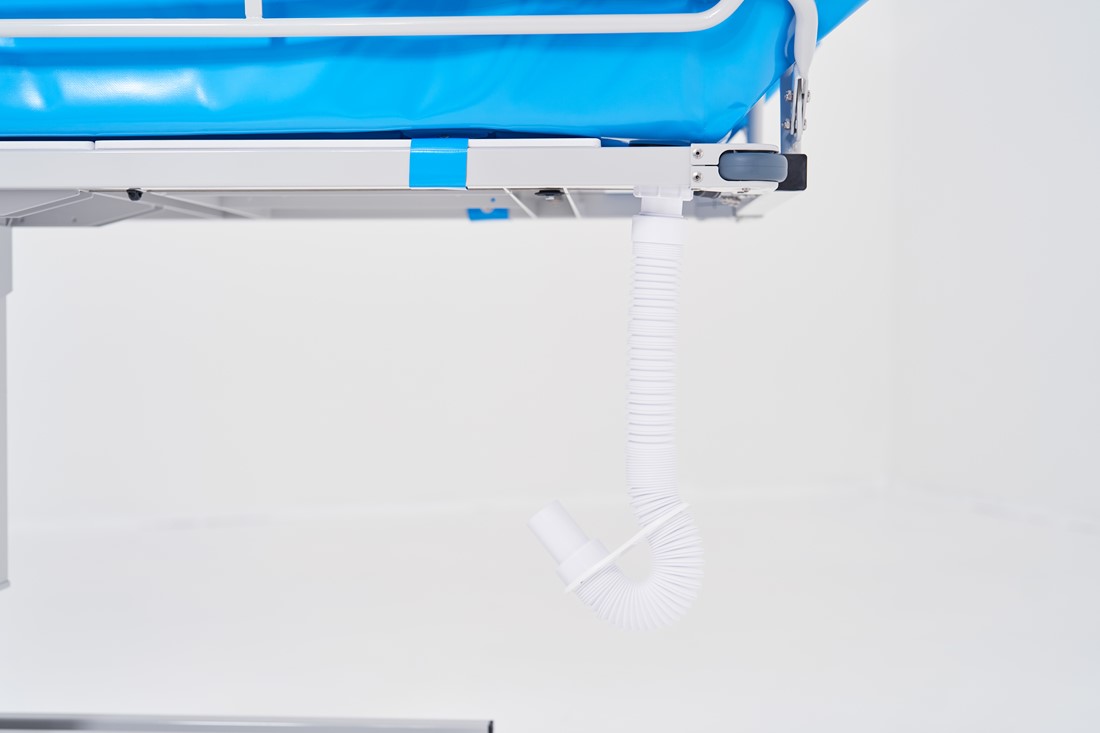

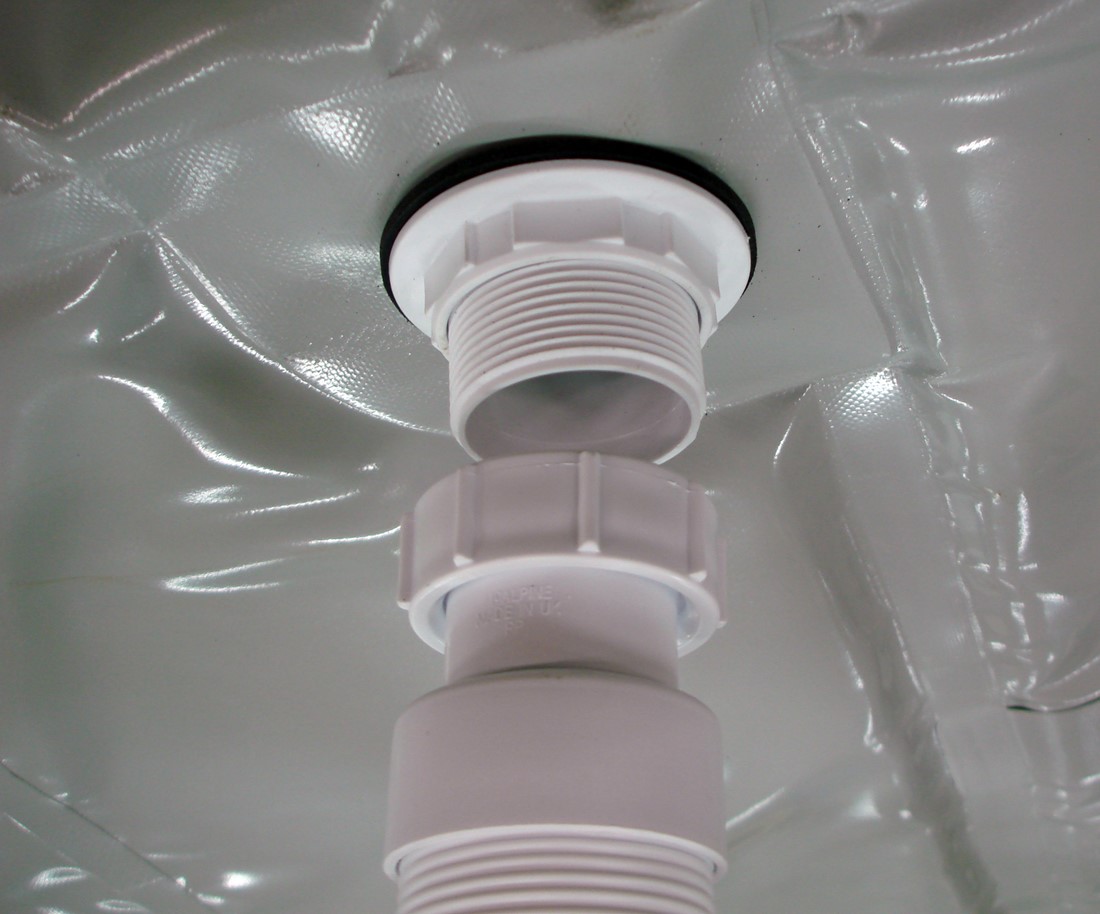

Flexible drainage hose, L = 1 m


For Caregiver

Caregiver

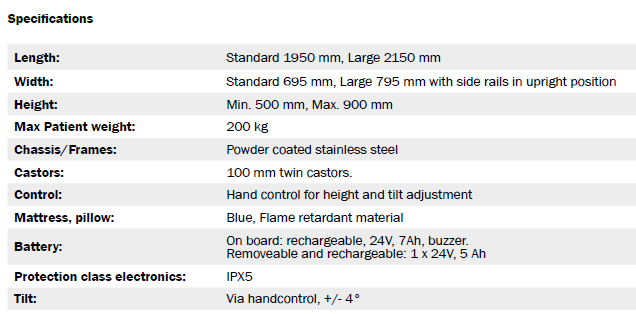

Basic specifications

ggg


Caregiver

Safe Patient Handling

The product is height-adjustable for caregiver's ergonomic use and is specifically designed and manufactured for safe in-patient hospital use.

Caregiver

Height adjustable

Quiet and smooth height adjustable motion from the hand control between 500-900 mm.
Audible tone when battery is running low.

Caregiver

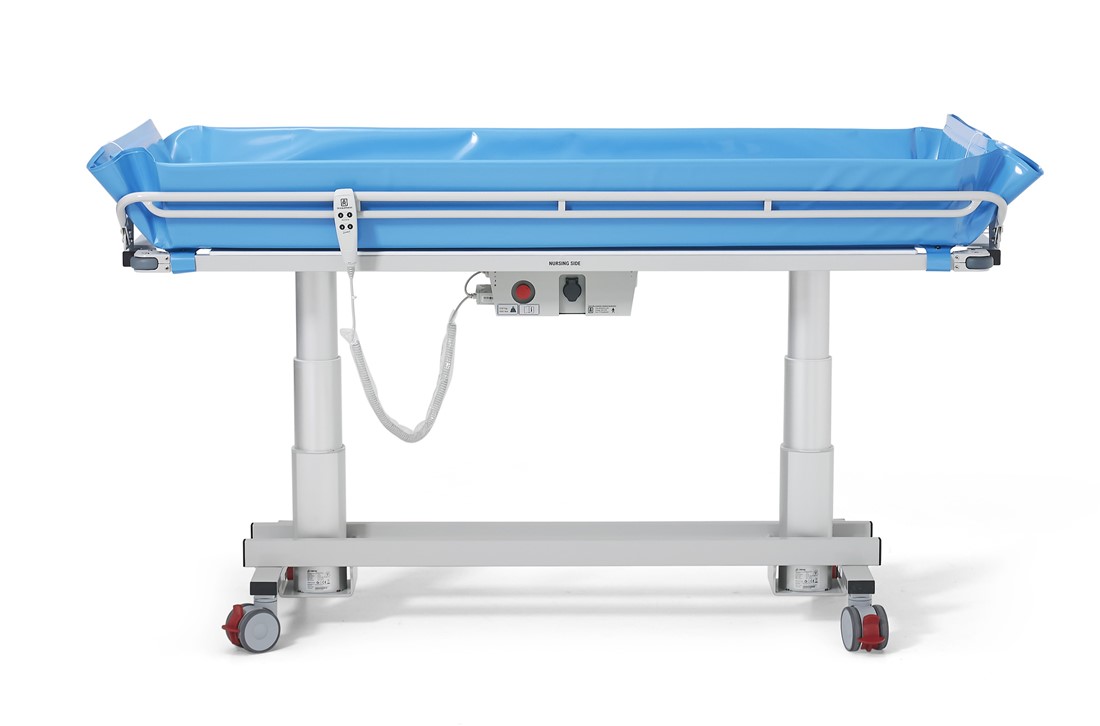

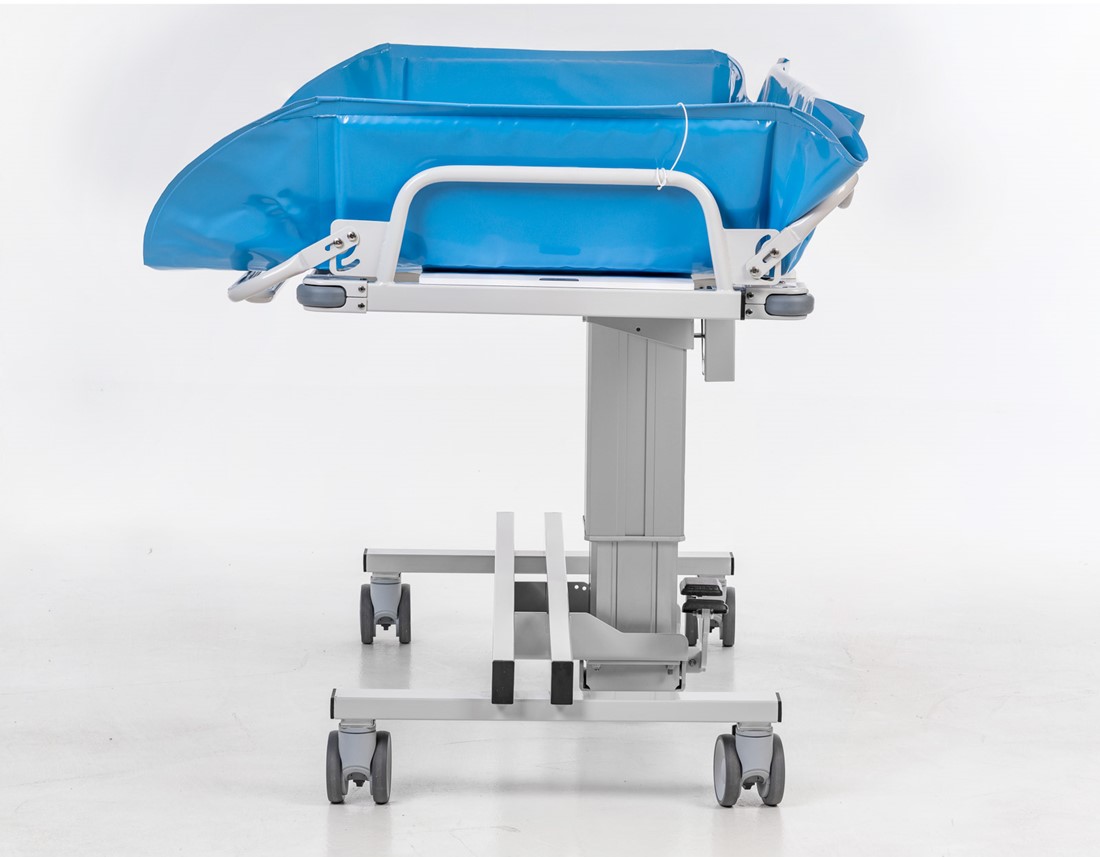

Side mounted column

Side mounted column design to allow the shower trolley stretcher to overlap the bed for a safe and easy patient transfer.


Caregiver

Clean design and easy access

The TR 3200 is designed for easy cleaning and ease in mobility and transfers.

Caregiver

Foldable and flexible side rails

Foldable side rails for efficient and safe patient transfer and transport. Side rail on bed side of the shower trolley folds to horizontal position. Side rail on attendant side folds all the way down for easier access to the patient.

The side rails can be pressed together when travelling through narrow dorrways.


Caregiver

Tilt adjustment

By using the hand control, the stretcher can easily be tilted (+-4°) i to the "Trendelenburg" position to alleviate person in shock. The tiliting function also eases drainage.An audiable tone sounds when the stretcher is level.




Caregiver

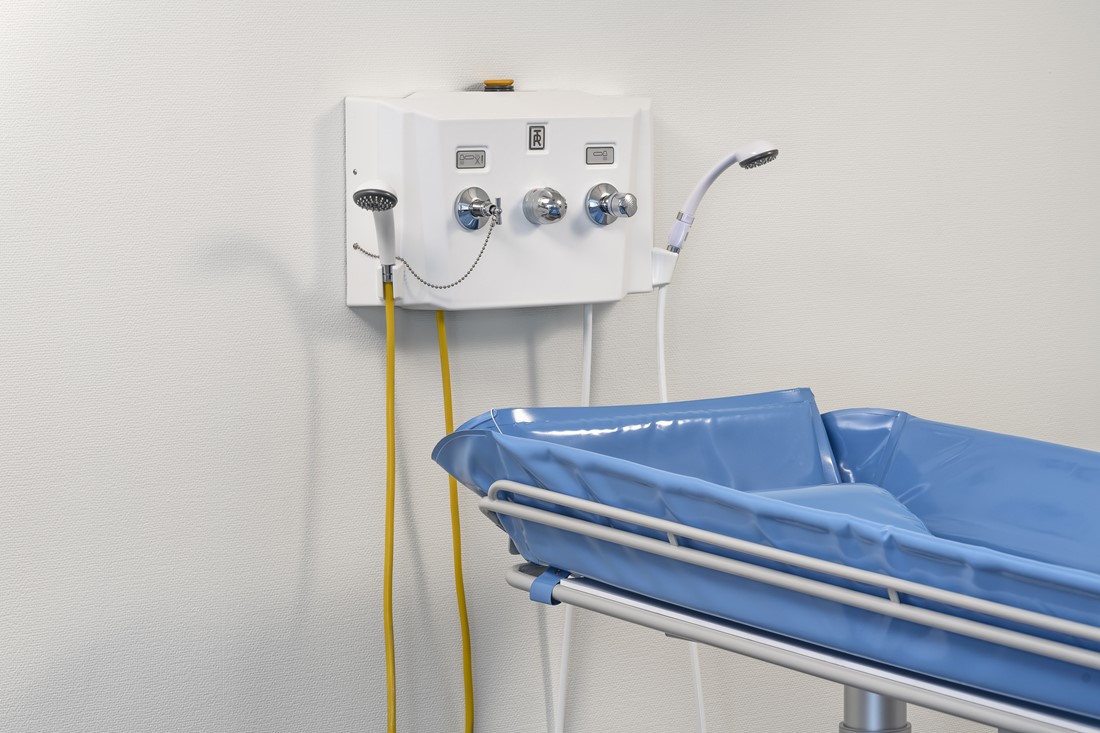

Use with TR 2810 Shower Panel

Suitable to use with the TR 2810 Shower Panel to fulfill a complete Shower system that is comfortable for both caregiver and patient.


Caregiver

The mattress is easily removable



Caregiver

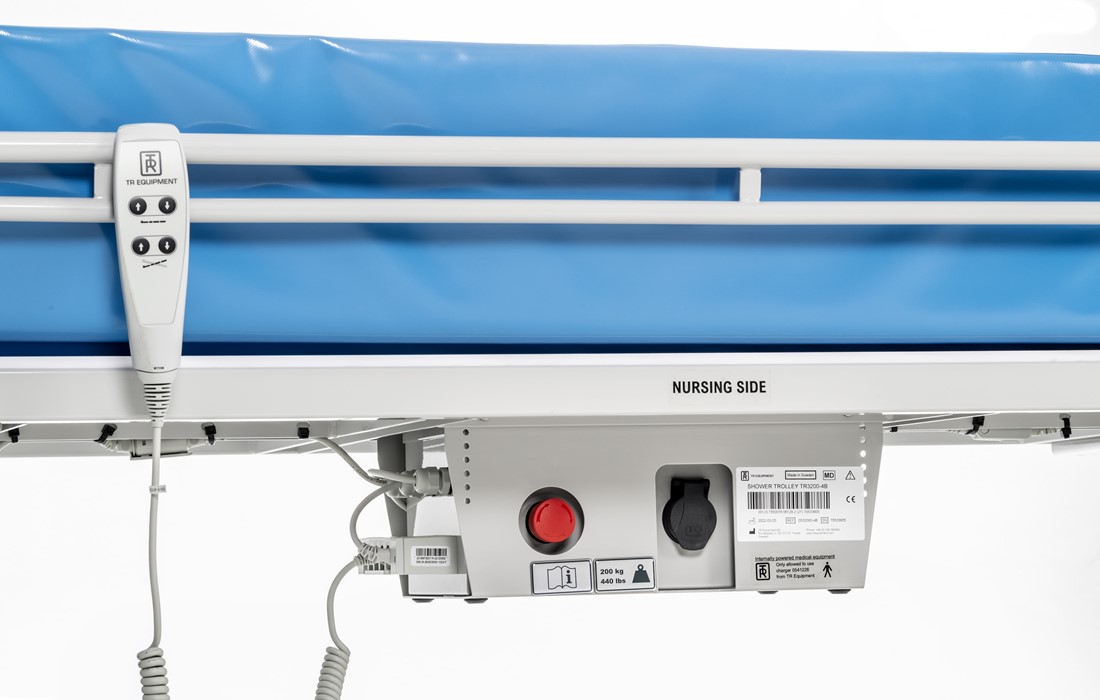

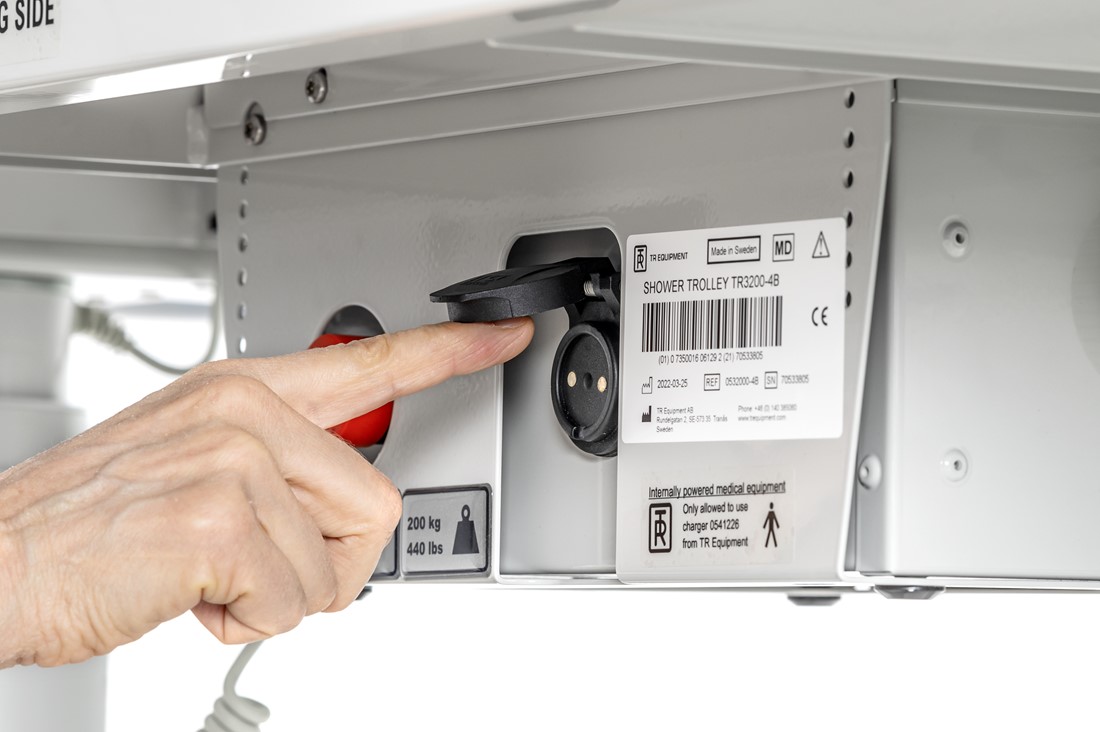

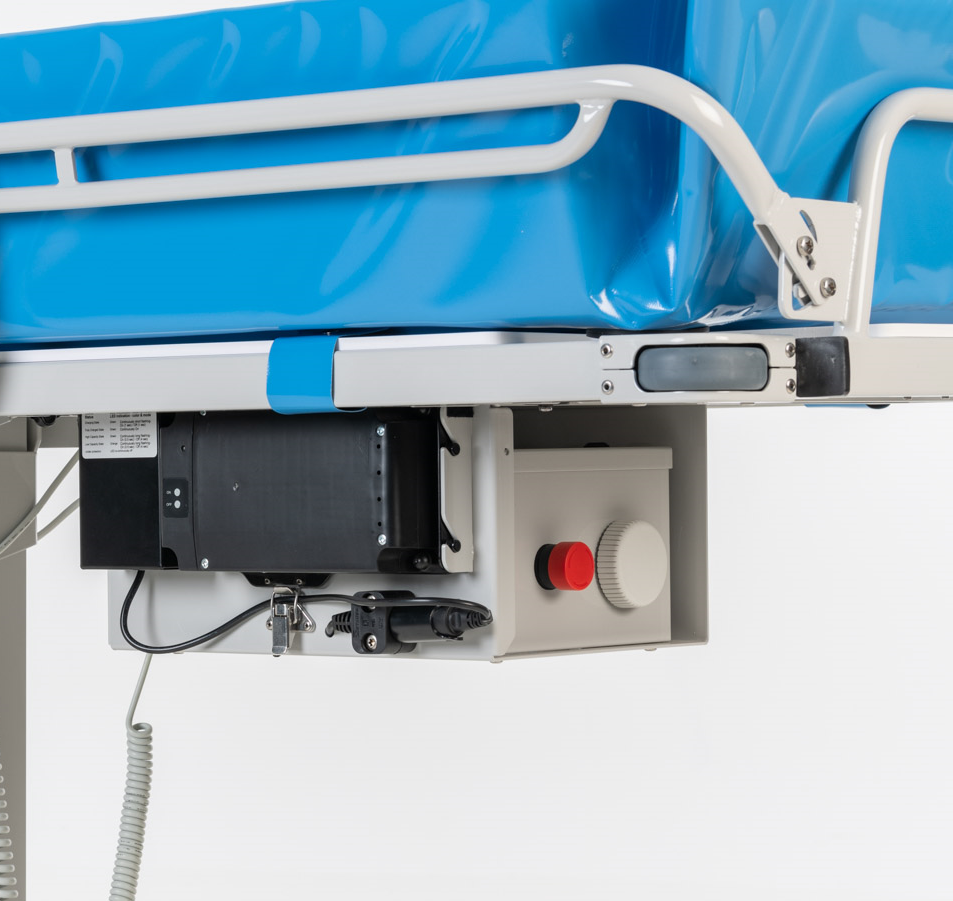

Emergency stop

If the lifting column on the shower trolley, for some reason must be stopped immediately and it doesn’t help to stop pressing the hand control, press the Emergency stop on the battery box.

The Emergency stop will cut the power supplied to the lifting column.


Caregiver

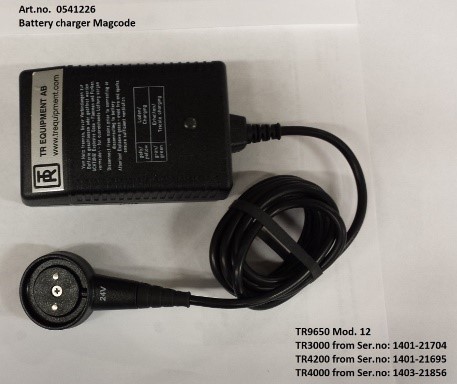

Easy to use Mag Code Charger

Charge your shower trolley daily or when the low battery audible tone sounds.
The batteries cannot be overcharged and, if possible, best practice is to always charge when not in use. The battery charger is equipped with a magnetic connector to avoid damages on the charger if the shower trolley will be moved during charging.

The charging indicator shows the charging cycles.
Yellow while charging and Green when the batteries are fully charged.



Accessories / Options

Accessories/Options

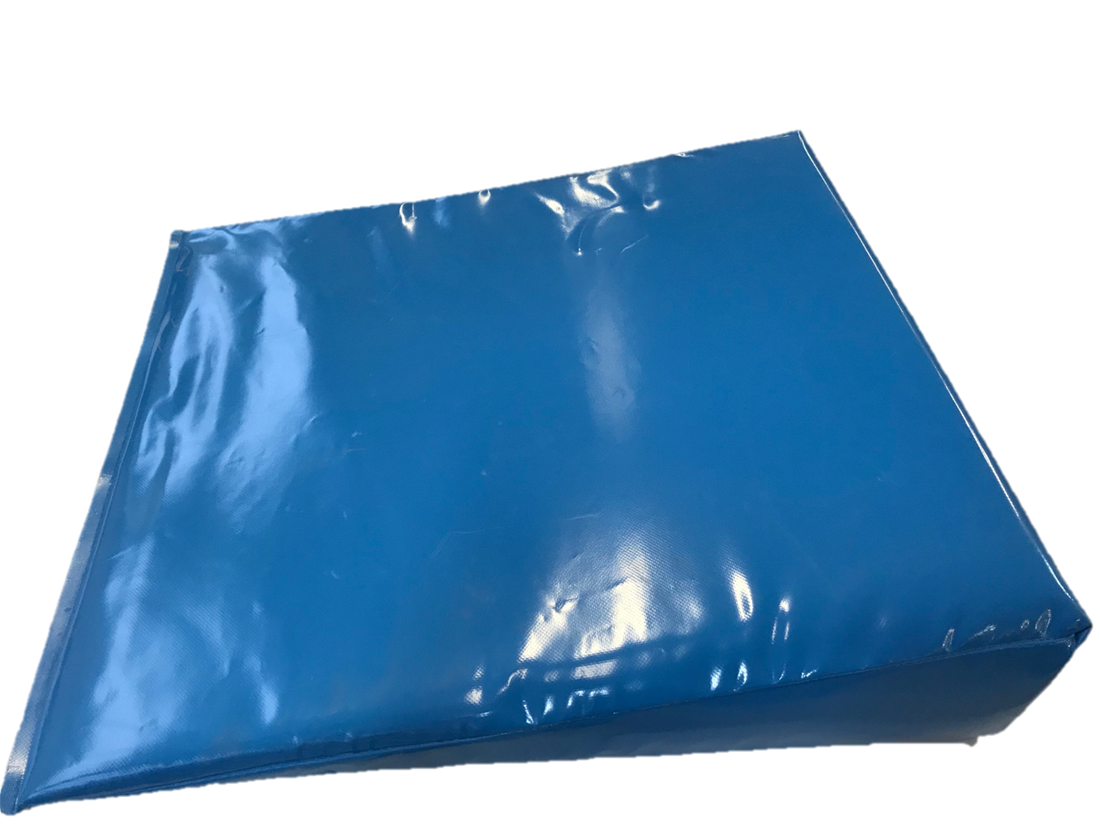

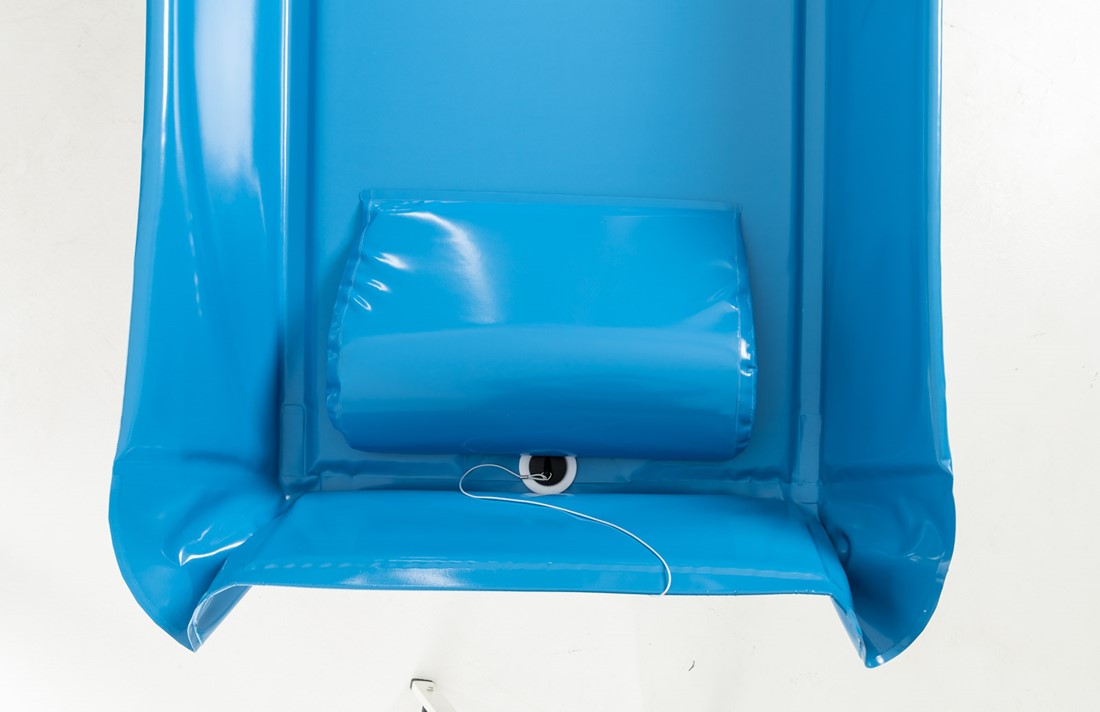

Backrest wedge pillow

15° comes in Blue or Grey and fits all TR3200 models.

30° comes in Grey and can only be used TR 3200 L


Accessories/Options

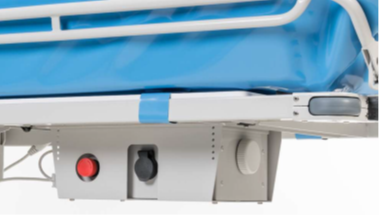

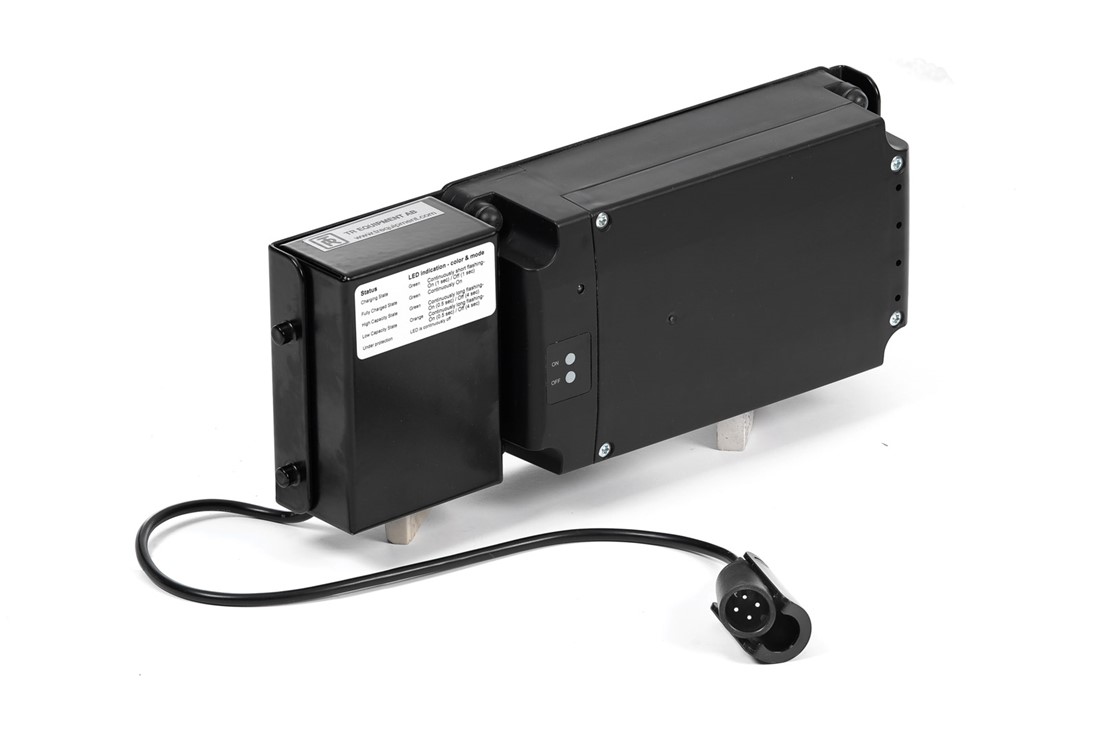

Removable rechargeable battery solution

Model TR3000 R with 24 VDC, 4 Ah (Lithium, rechargeable) battery



Accessories/Options

Color, head pillow and mattress

All models can be delivered with grey head pillow and mattress instead of blue (standard)


Accessories/Options

Straight steering castors

Standard trolley comes with 4 braked castors.


Accessories/Options

Longer drainage hose, 2,5 m

Instead of 1 m as standard.

Accessories/Options

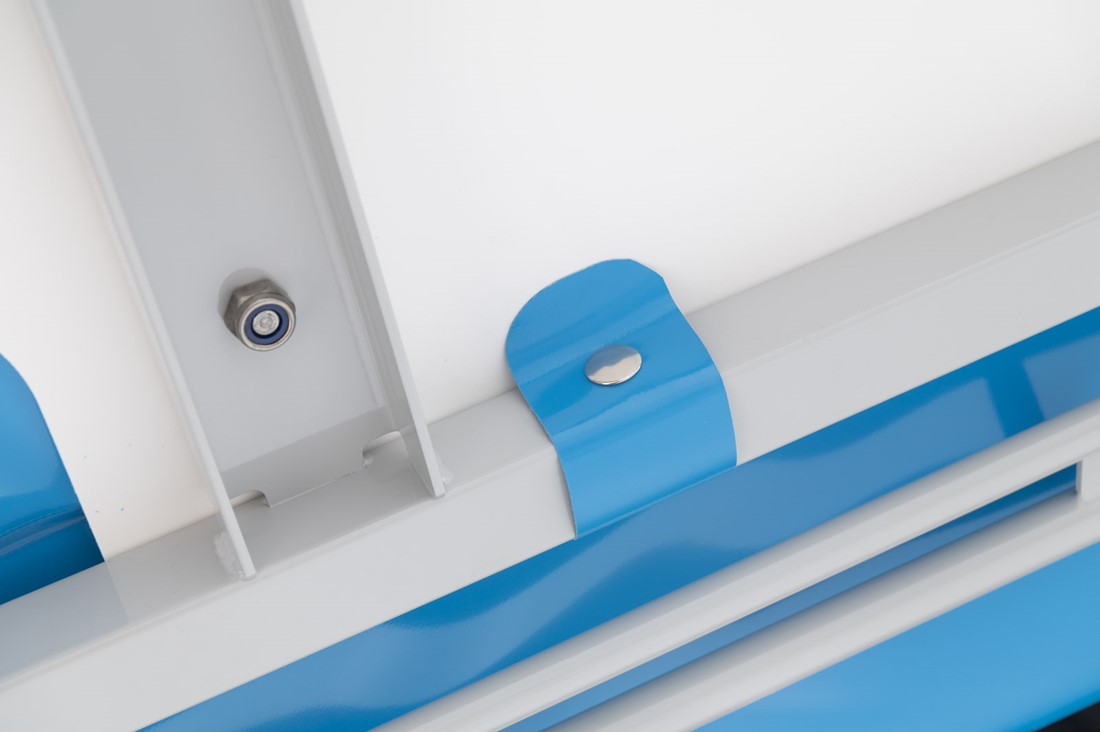

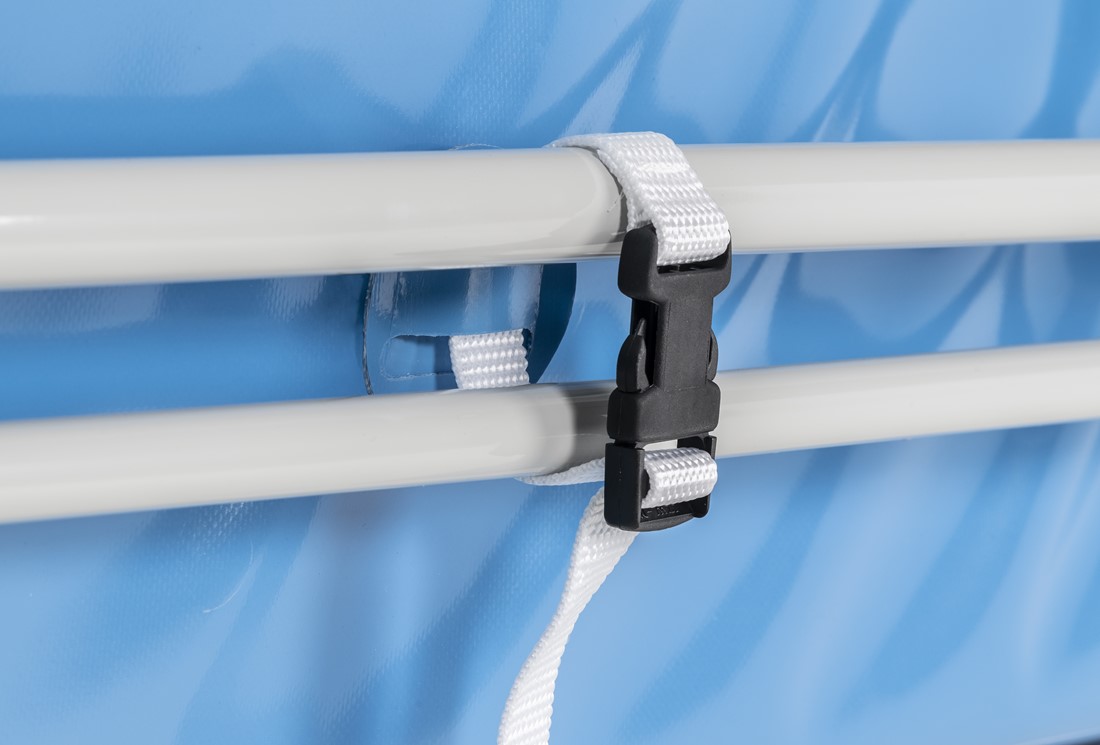

Fastners/straps for attachment on mattresses to side rails
