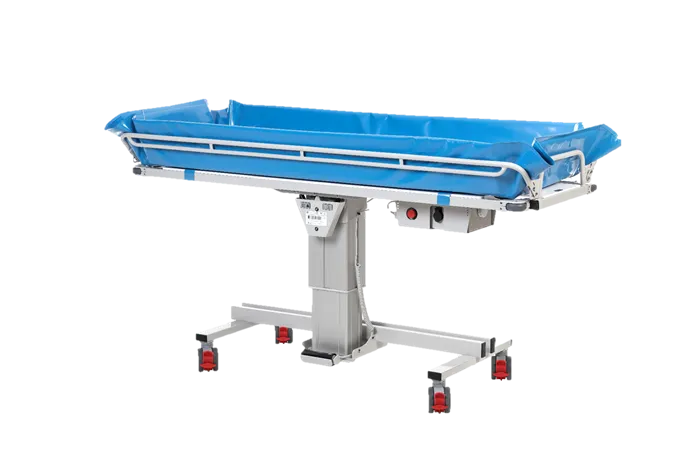

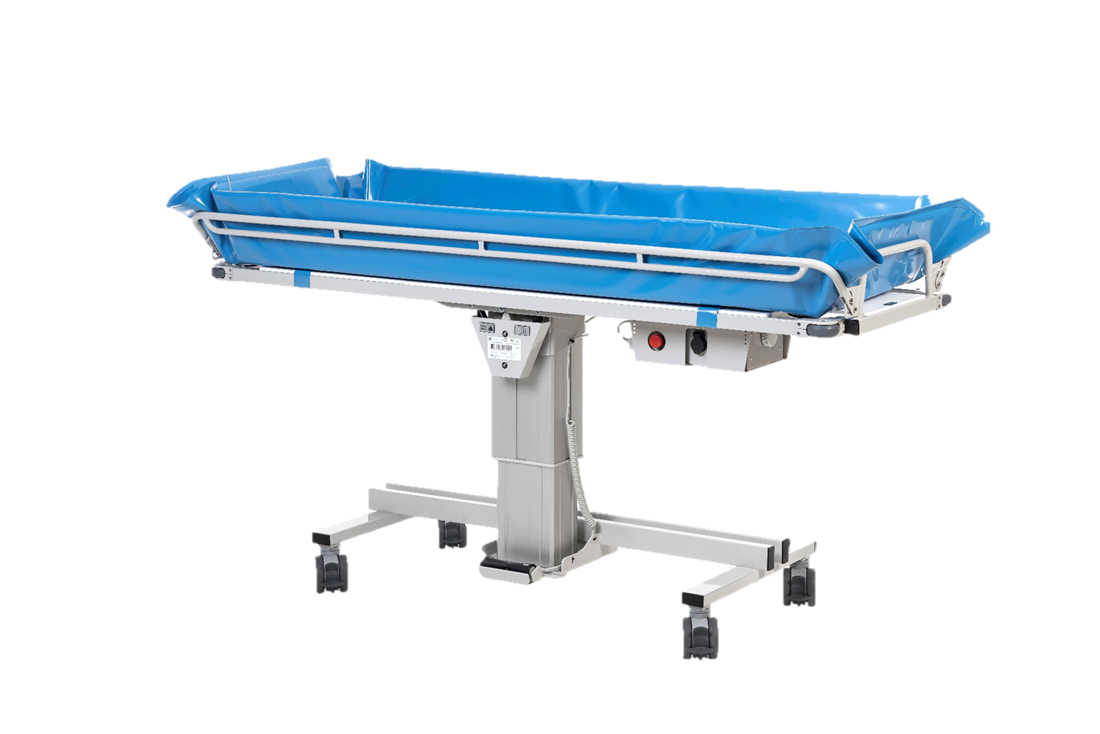

SHOWER TROLLEY TR 3000 Mod 21

Multi-tasking battery operated shower trolley with endless application possibilities

The TR 3000 battery operated shower trolley (max patient weight 200 kg/440 Ibs) is unique with its side mounted column allowing the trolley stretcher to overlap the bed further for a safe and easy patient transfer.

The trolley drains at both ends allowing the person to be positioned in either direction, an invaluable feature for the caregiver.

All versions are available with an on-board battery solution or with removeable rechargeable batteries.

Complete shower trolley IPX5.

The TR 3000 is available in three lengths :

All TR3000 models come delivered ready for use with a MagCode charger, mattress, head pillow, 4 braked castors and 1 m flexible drainage hose.

See product documents

Features

Standard Equipment

Standard Equipment

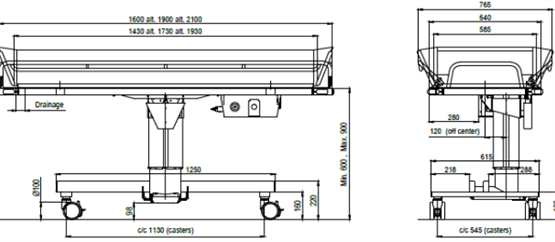

Measurements (mm)

TR3000 mod 21 mm

Product Measurement document available for download at the bottom of the page.

Standard Equipment

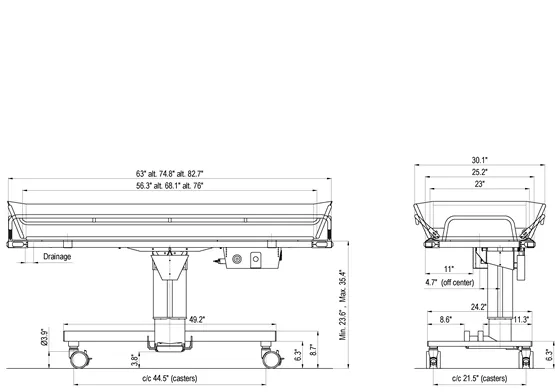

Measurements (inch)

Duschvagn 3000 broschyr inches

Product Measurement document available for download at the bottom of the page.

Standard Equipment

Maximum patient weight of 200 kg / 440 lbs


Standard Equipment

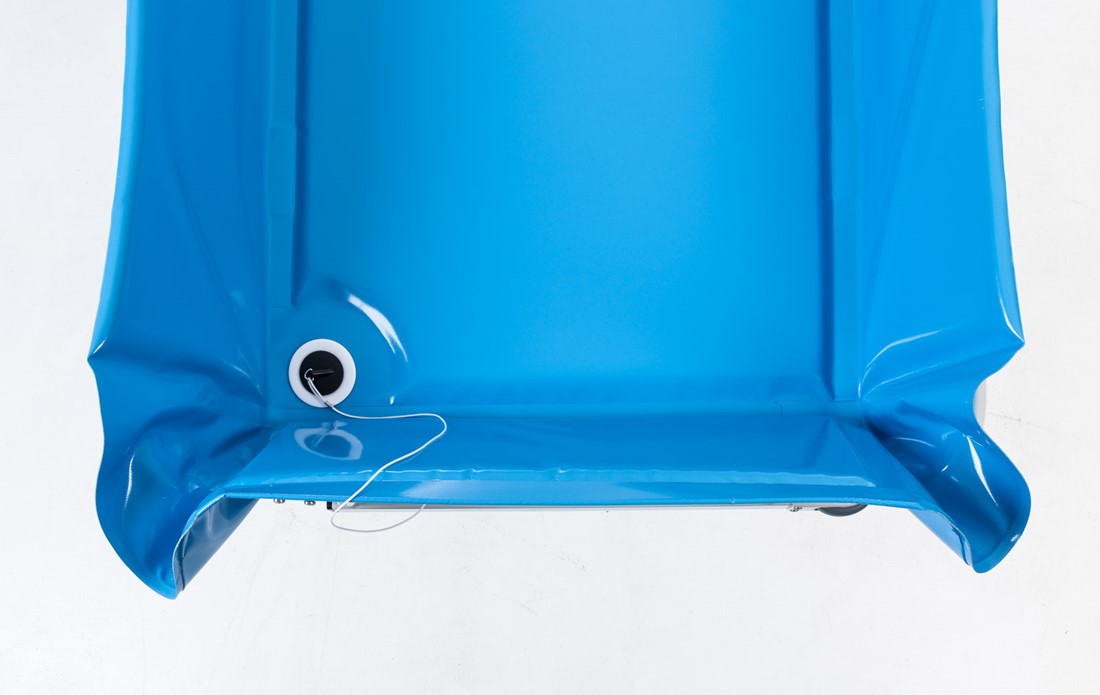

Dual drainage offer easy change of designated head end


Standard Equipment

Floor clearance at 160 mm to enable floor lift transfers


Standard Equipment

The chassis and sub-frames are made of powder coated stainless steel

Proven choice of durable high-quality material guarantees a low cost of ownership.

Standard Equipment

Bumper wheel protection

The stretcher has rubber bumper wheels on all four corners to protect walls and doorways.


Standard Equipment

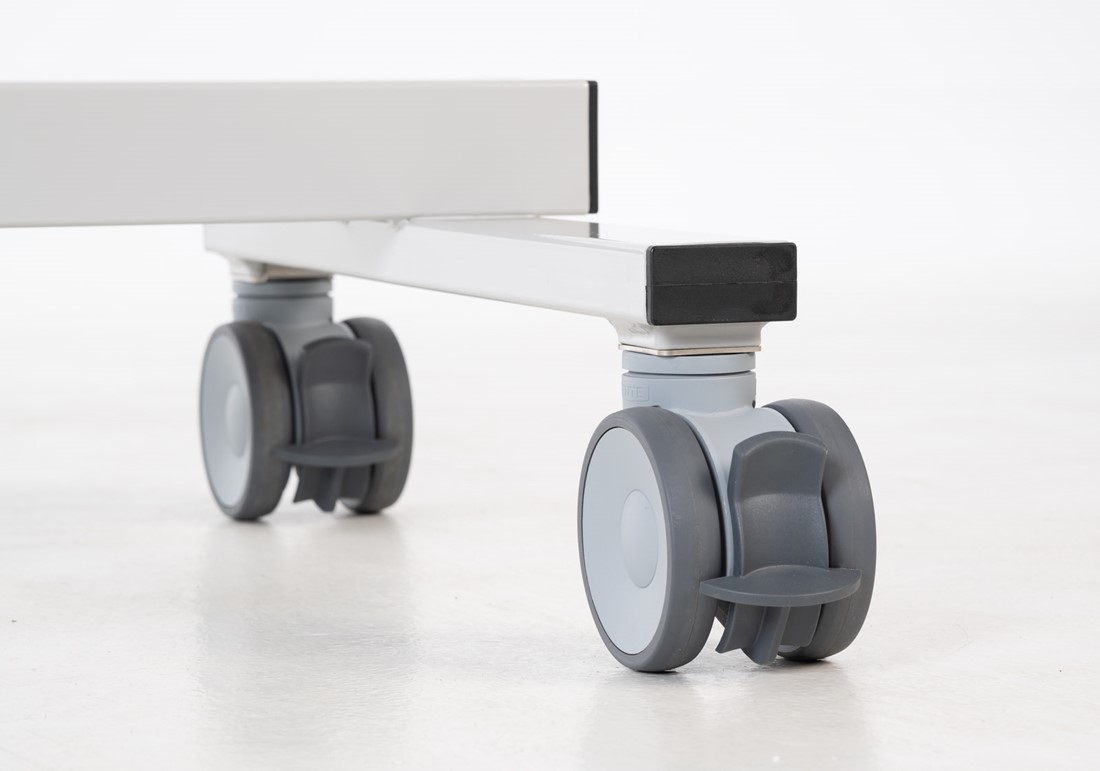

Four 100 mm braked twin castors as standard

Straight Steering castors available as an option

Standard Equipment

Mattress and head pillow in blue color

Well proven high quality durable mattress designed to last for years made in Flame retardant PVC material.
Easily removable from the shower trolley.

Standard Equipment

Flexible drainage hose, L =1 m


Standard Equipment

Battery solution

On board, high capacity, rechargable batteries (24 V, 14 Ah) to be charged via main supply.

Magnetic charger connection for safety and ease of use.


For Caregiver

Caregiver

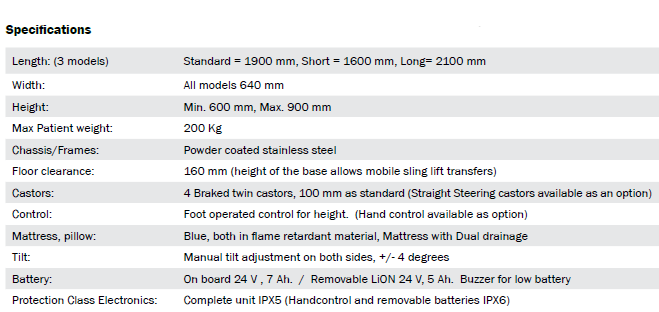

Basic specifications


Caregiver

Safe Patient Handling

The product is height-adjustable for caregiver's ergonomic use and is specifically designed and manufactured for safe in-patient hospital use.

Caregiver

Height adjustable

Quiet and smooth foot operated height adjustable motion between 600-900 mm.
Audible tone when battery is running low.

Caregiver

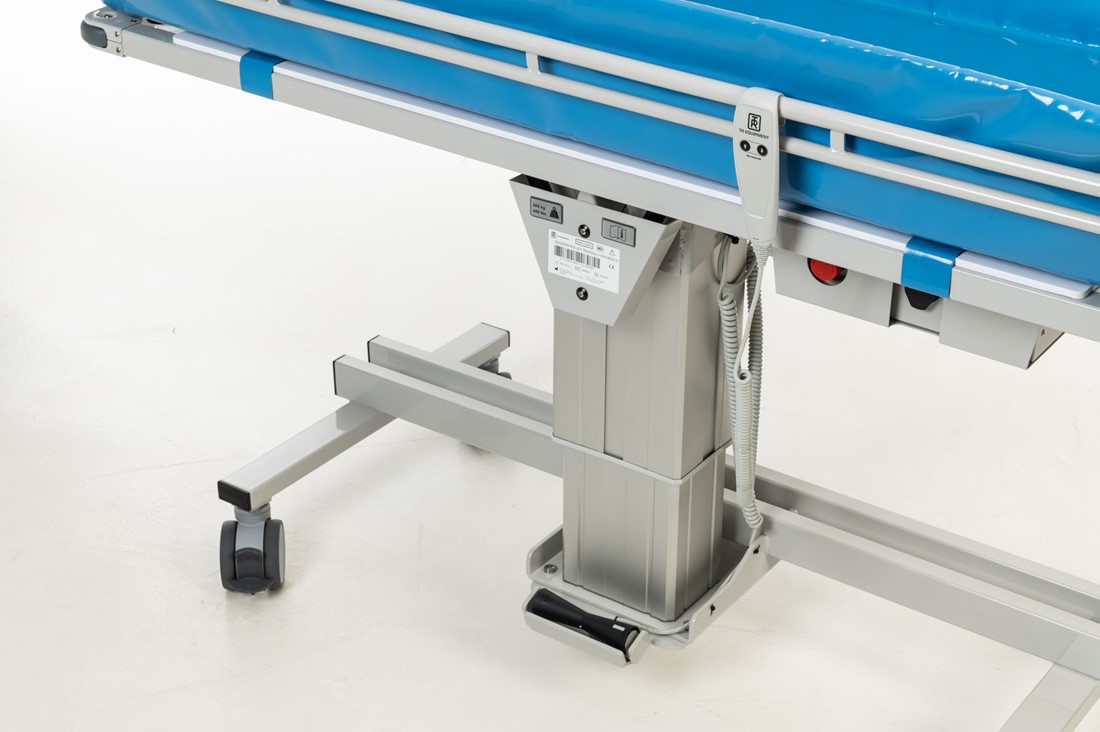

Side mounted column

Side mounted column design to allow the shower trolley stretcher to overlap the bed for a safe and easy patient transfer.


Caregiver

Clean design and easy access

The TR 3000 Mod 21 is designed for easy cleaning and ease in mobility.

Caregiver

The mattress is easily removable


Caregiver

Foldable and flexible side rails

Foldable side rails for efficient and safe patient transfer and transport. Side rail on bed side of the shower trolley folds to horizontal position. Side rail on attendant side folds all the way down for easier access to the patient.

The side rails can be pressed together when travelling through narrow dorrways.




Caregiver

Tilt adjustment

The stretcher can easily be tilted (+-4°) in both directions by using the tilt control located at both ends of the Shower Trolley.
Use the tilting adjustment for easy drainage and to get the patient into "Trendelenburg" position to alleviate person in shock.


Caregiver

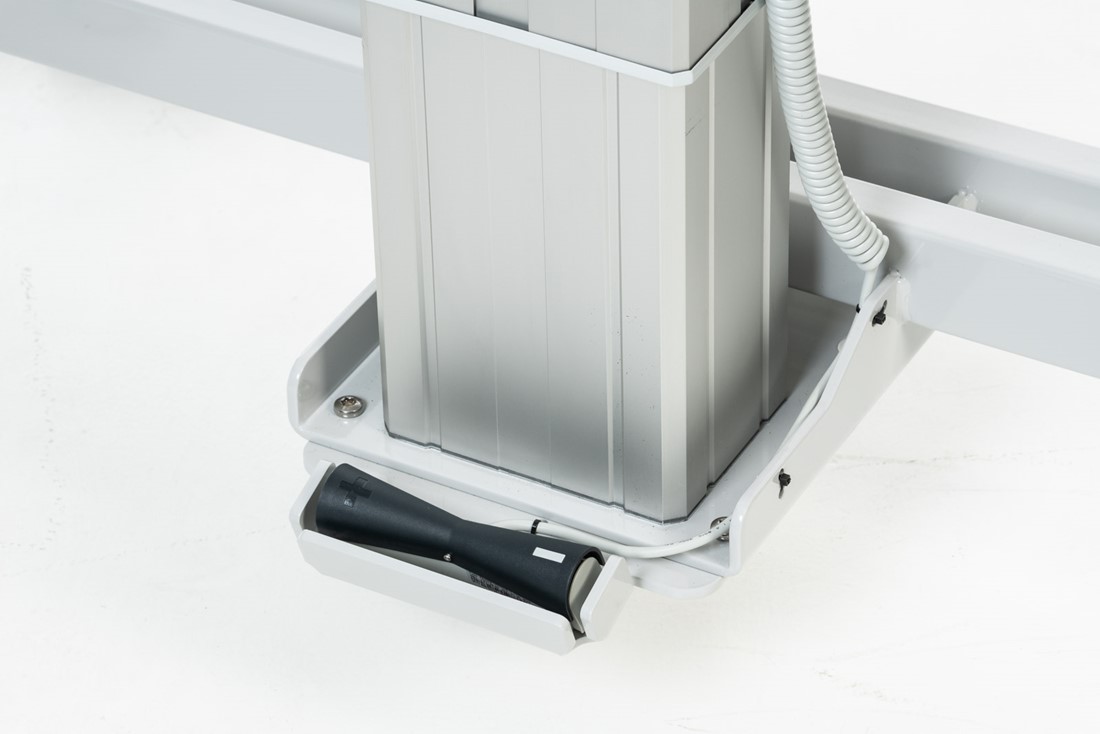

Foot control

The foot operated control is out of reach for the resident for raising and lowering the shower trolley to assure hands free operation for caregiver.

Comes as standard with foot control, plug and play hand control available as option.


Caregiver

Emergency stop


If the lifting column on the shower trolley, for some reason must be stopped immediately and it doesn’t help to stop pressing the hand control, press the Emergency stop on the battery box.

The Emergency stop will cut the power supplied to the lifting column.

Caregiver

Use with TR 2810 Shower Panel

Suitable to use with the TR 2810 Shower Panel to fulfill a complete Shower system that is comfortable for both caregiver and patient.


Caregiver

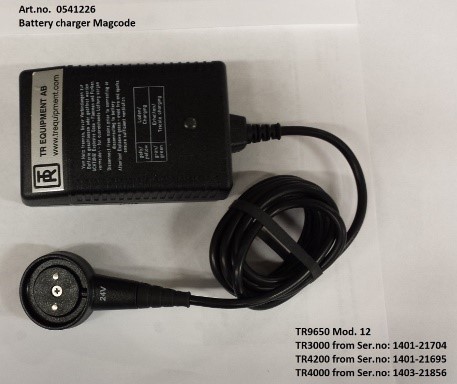

Easy to use Mag Code Charger

Charge your shower trolley daily or when the low battery audible tone sounds.
The batteries cannot be overcharged and, if possible, best practice is to always charge when not in use. The battery charger is equipped with a magnetic connector to avoid damages on the charger if the shower trolley will be moved during charging.

The charging indicator shows the charging cycles.
Yellow while charging and Green when the batteries are fully charged.


Accessories / Options

Accessories/Options

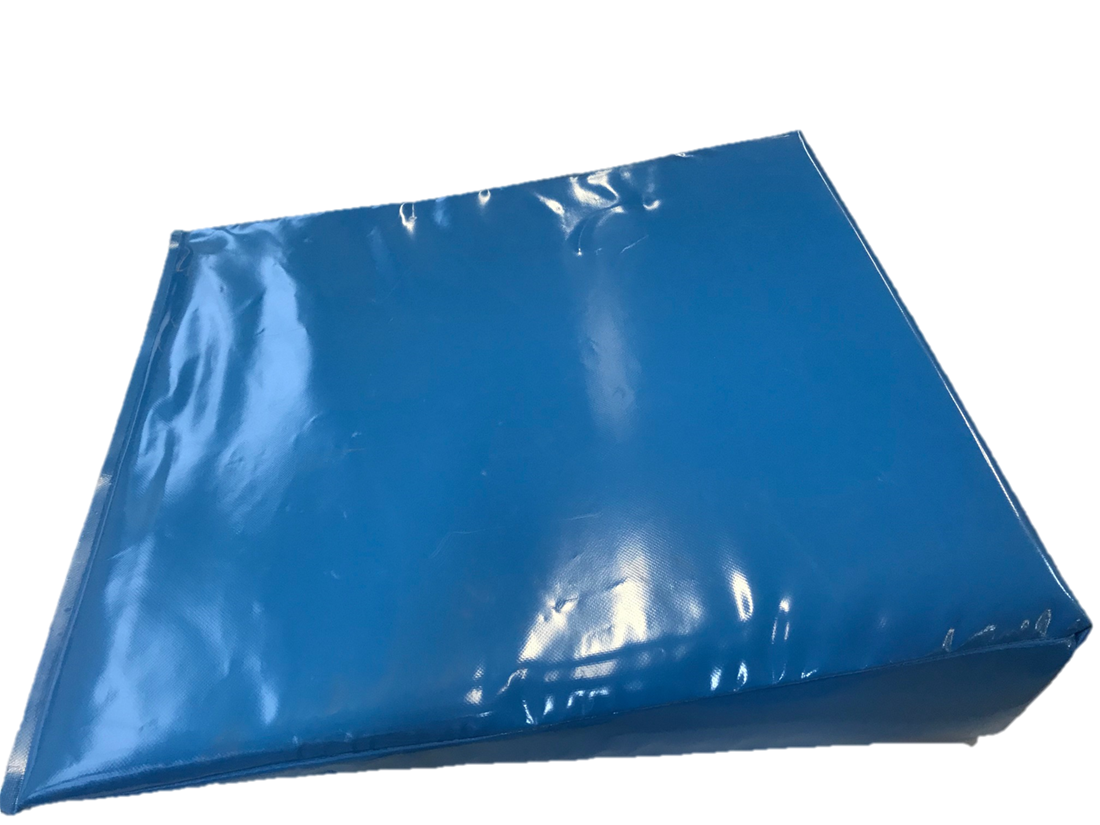

Backrest wedge pillow

15° comes in Blue or Grey and fits TR3000, TR3000 S, TR3000 L


Accessories/Options

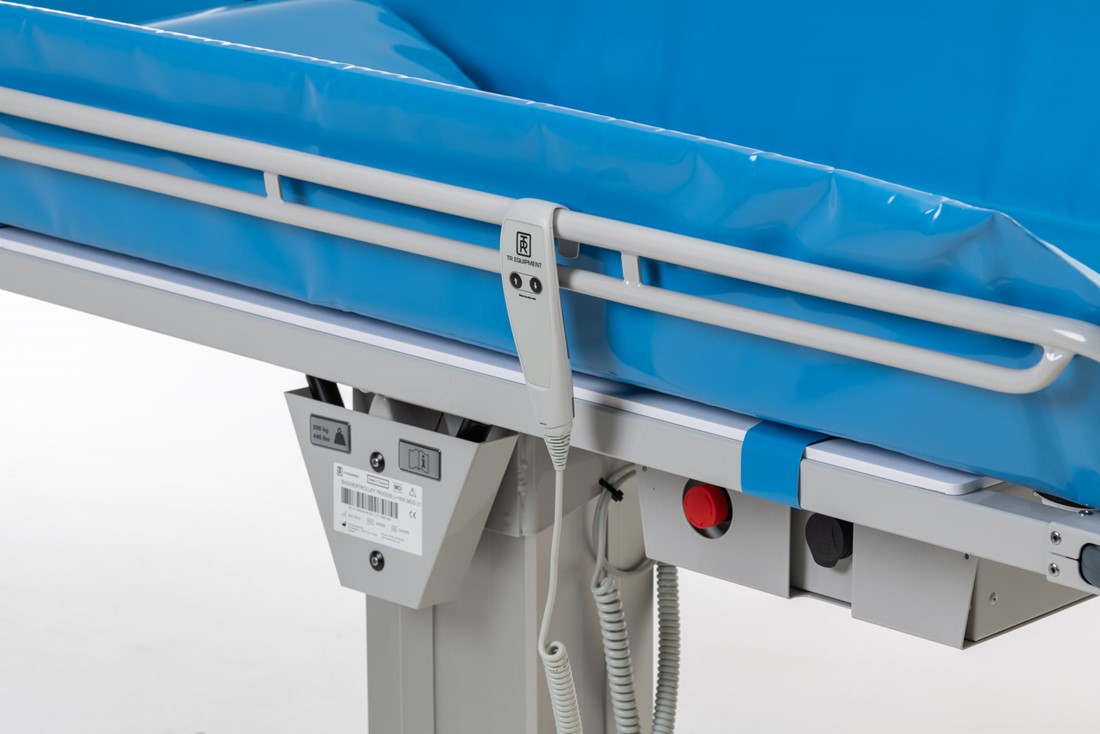

Hand control

As an option to combine with foot control (Plug & play)


Accessories/Options

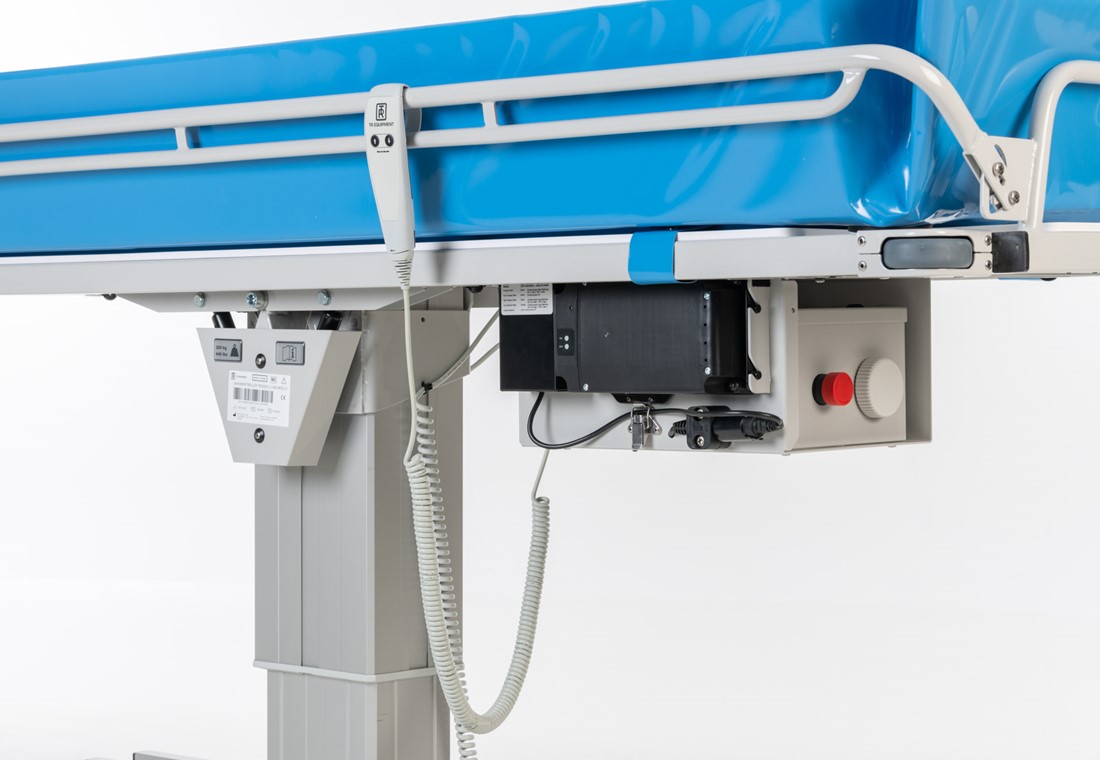

Removable rechargeable battery solution

Model TR3000 R with 24 VDC, 4 Ah (Lithium, rechargeable) battery

Accessories/Options

Color, head pillow and mattress

All models can be delivered with grey head pillow and mattress instead of blue (standard)


Accessories/Options

Straight steering castors

Standard trolley comes with 4 braked castors.

Accessories/Options

Longer drainage hose, 2,5 m

Instead of 1 m as standard.

Accessories/Options

Fastners/straps for attachment on mattresses to side rails


We at Centro Social e Cultural de S. Pedro de Bairro choose to use the TR shower trolley mainly because of its high quality and that it is easy to use. The shower trolleys are used several times per day and are besides showering also used for treatments like massages and to treat decubitus ulcerous. It is also used in Burn units.

The patients feel comfortable and secure when they shower on TR’s shower trolley. Every patient prefers to have a shower on the TR shower trolley rather than in the shower cabin.

The staff appreciates the product because they find it easy to use and it helps preventing back injuries. I would surely recommend a TR shower trolley because it is very useful and I think every place like nursing homes and hospitals should have at least one.

Nurse Goreti Machado, Bairro, Portugal
