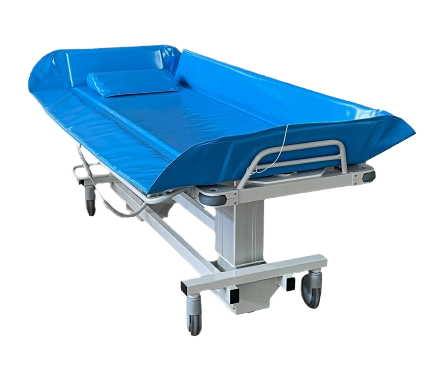

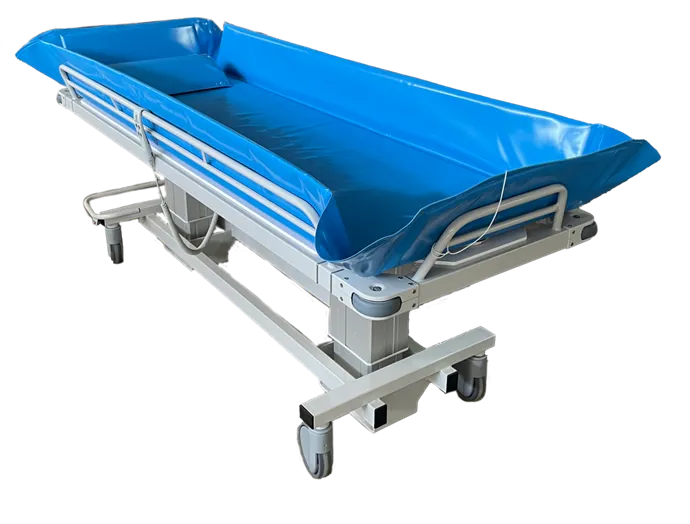

BARIATRIC SHOWER TROLLEY TR 4200

Offers safe, efficient and dignified care for plus size patients.

Battery operated bariatric shower trolley that meets all your hygiene and work safety related needs working with assisted showering.

Shower trolley with lots of power and plenty of body space designed for a Working Load Limit of 270 kg/600 lbs. The shower trolley is suitable for many different purposes besides showering, for example dressing and nursing: the possibilities are endless.

All versions are available with an on-board battery solution or with removeable rechargeable batteries. Complete shower trolley IPX5.

TR4200 comes delivered ready for use with a MagCode battery charger, mattress, head pillow and 1 m flexible drainage hose.

See product documents

Features

Standard Equipment

Standard Equipment

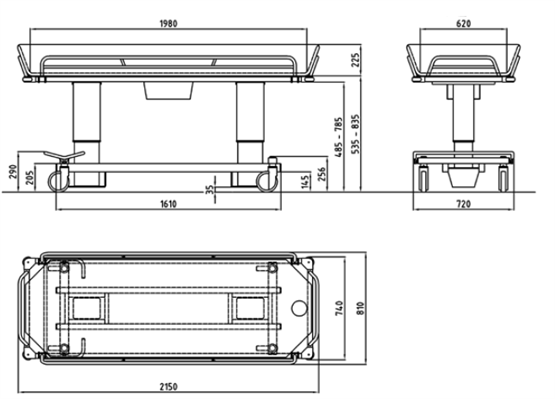

Measurements (mm)

TR4200 mm

Product measurements document available for download at the bottom of the page.

Standard Equipment

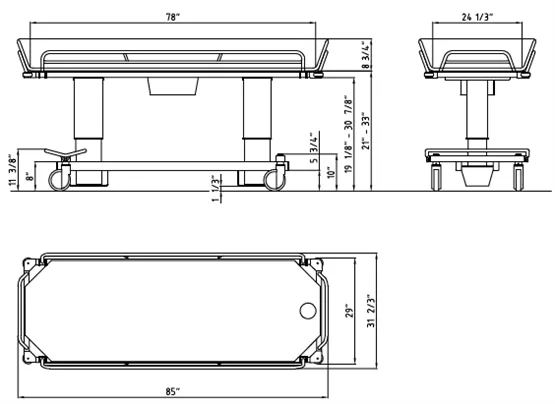

Measurements (inch)

TR4200 inch

Product measurements document available for download at the bottom of the page.

Standard Equipment

Maximum patient weight of 270 kg / 600 lbs


Standard Equipment

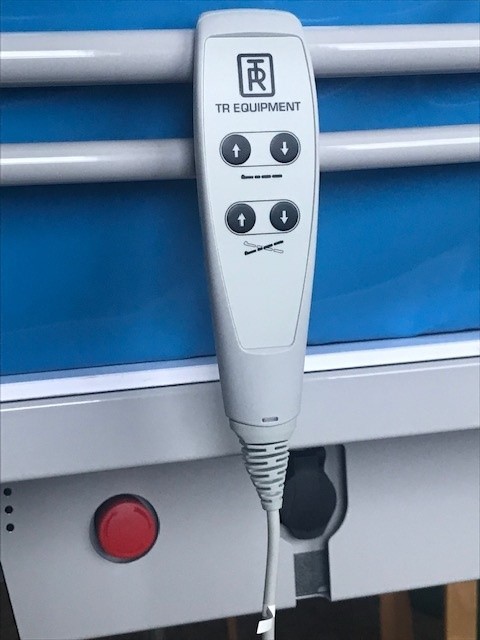

Hand control

The hand held control operates the power tilt in both directions and raises and lowers the trolley.



Standard Equipment

Corner bumper wheels

The stretcher has rubber bumper wheels on all four corners to protect waals and doorways.


Standard Equipment

Large casters

Large castors (150 mm) for convenient and easy transport of the shower trolley.


Standard Equipment

Soft flame retardant mattress and pillow

Standard Equipment

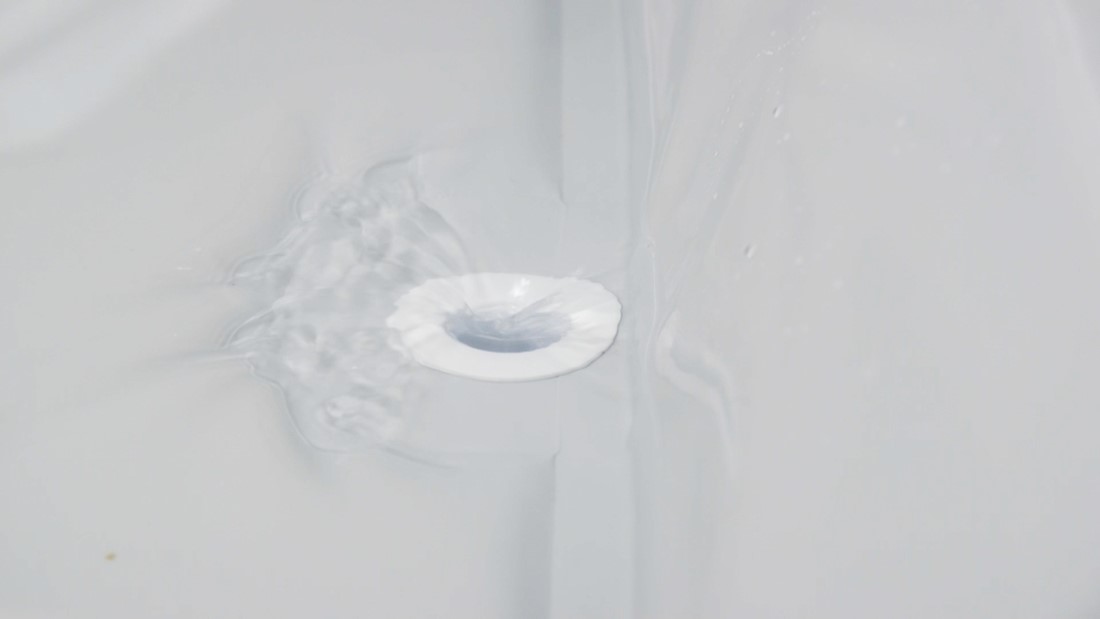

Drainage at the foot end


Standard Equipment

The chassis and sub-frames are made of powder coated stainless steel



Standard Equipment

High capacity batteries

On board, high capacity, rechargeable batteries (24 V, 14 Ah) to be charged via main supply. Magnetic battery charger connection for safety and ease of use.


Standard Equipment

Flexible drainage hose L=1 m


For Caregiver

Caregiver

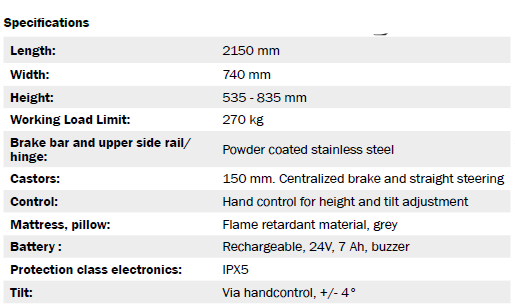

Basic specifications


Caregiver

Safe Patient Handling

The product is height-adjustable for caregiver's ergonomic use and is specifically designed and manufactured for safe in-patient hospital use showering both bariatric and taller patients.


Caregiver

Height adjustable

By using the hand control, the stretcher easily and quietly raises by two powerful actuators and enables a comfortable and ergonomic working position for the caregiver. The adjustment height is between 535-835 mm.


Caregiver

Tilt adjustment

By using the hand control, the stretcher can easily be tilted (+-4°) to the "Trendelenburg" position to alleviate a person in shock.
The tilting function also eases drainage.
An audible tone sounds when the stretcher is level.

Tilted head end

Tilted foot end

Caregiver

The mattress is easily removable

Caregiver

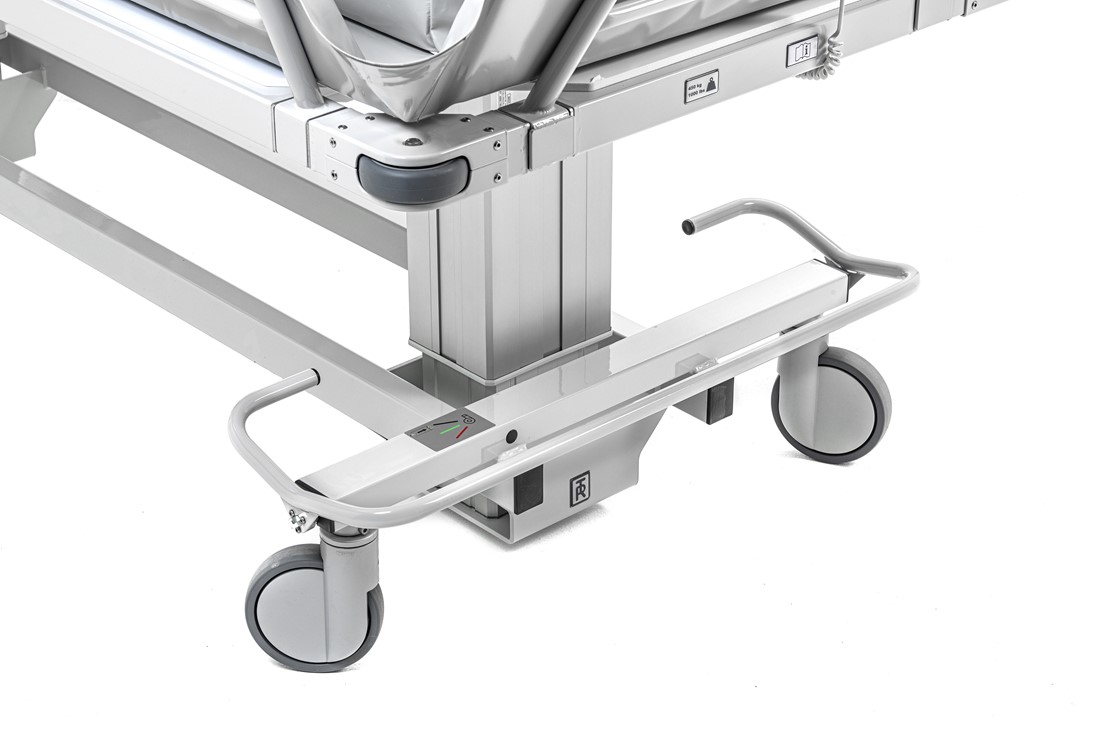

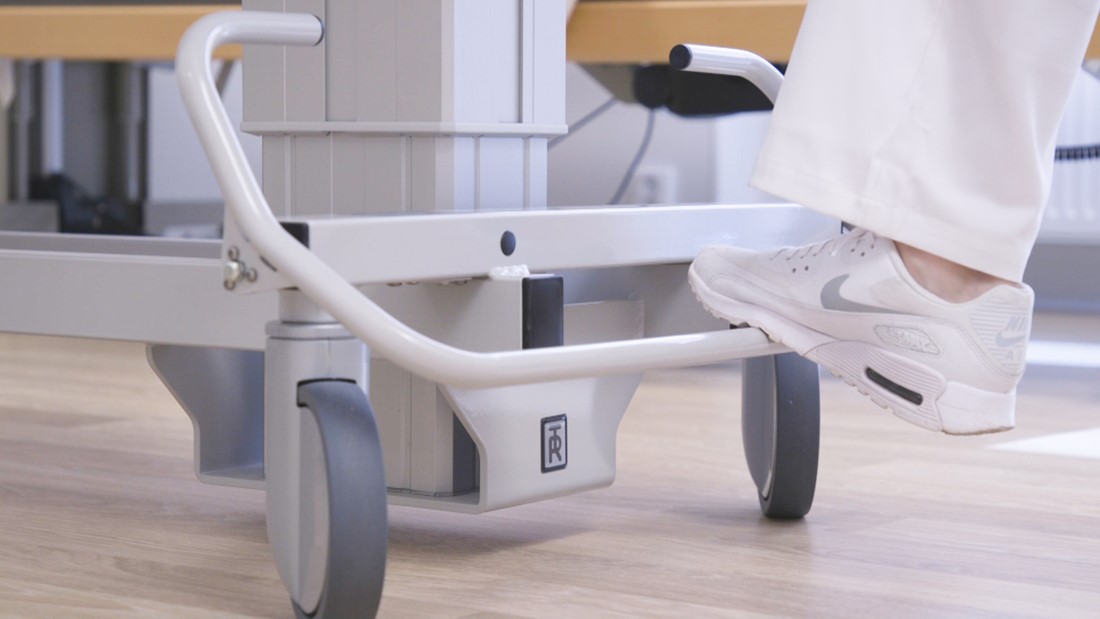

Centralized break and straight steering

Convenient single foot control for brakes on all four castors and straight steering.


Caregiver

Foldable and flexible side rails

Shower Trolley with 180 degrees foldable side rails in stainless steel  that locks into position.
The flexible side rail gives the caregiver easier access during patient transfer, they can also be pressed together when passing through narrow doorways.





Caregiver

Transfer and operation

The bariatric Shower Trolley is easy to operate, clean and maintain and offers efficient, safe  and dignified patient transfer, transport and showering.

Caregiver

Use with TR 2810 Shower Panel

Suitable to use with TR 2810 Shower Panel to fulfill a complete shower system that is comfortable for both caregiver and patient.


Caregiver

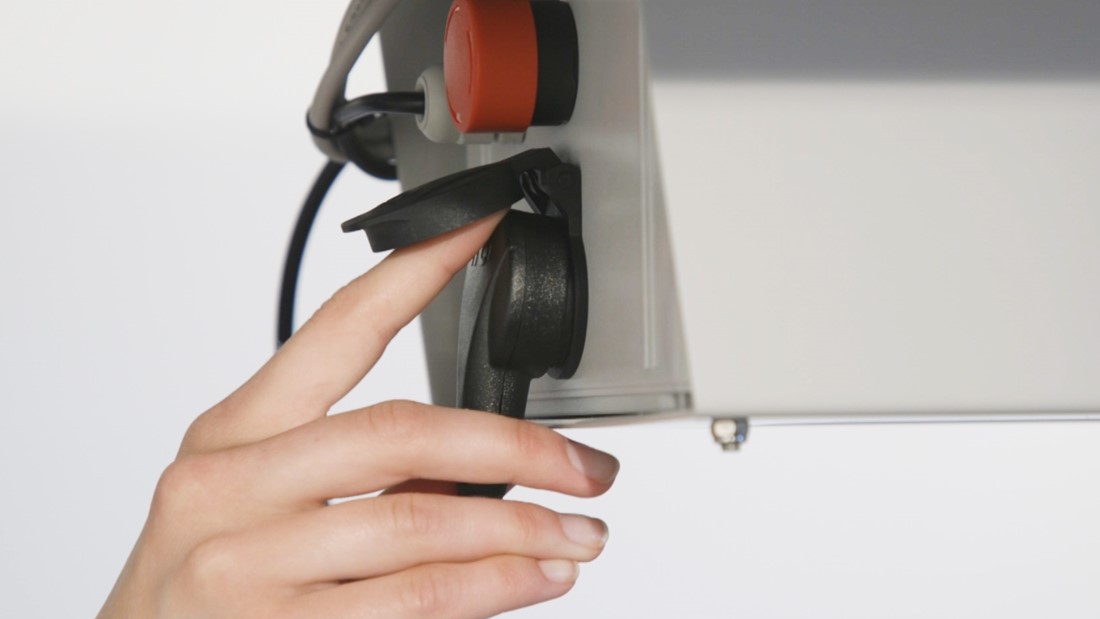

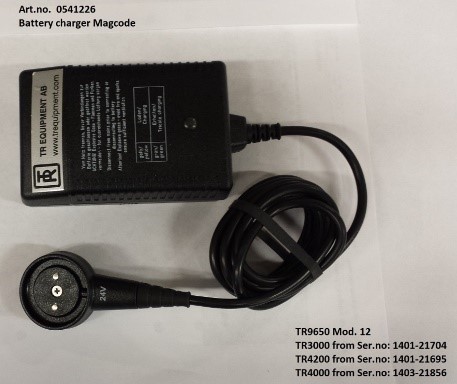

Easy to use MagCode Charger

Charge your shower trolley daily or when the low battery audible tone sounds.
The batteries cannot be overcharged and, if possible, best practice is to always charge when not in use. The battery charger is equipped with a magnetic connector to avoid damages on the charger if the shower trolley will be moved during charging.

The charging indicator shows the charging cycles.
Yellow while charging and Green when the batteries are fully charged.




Accessories / Options

Accessories/Options

Color, head pillow

All models are delivered with blue pillow as standard.


Accessories/Options

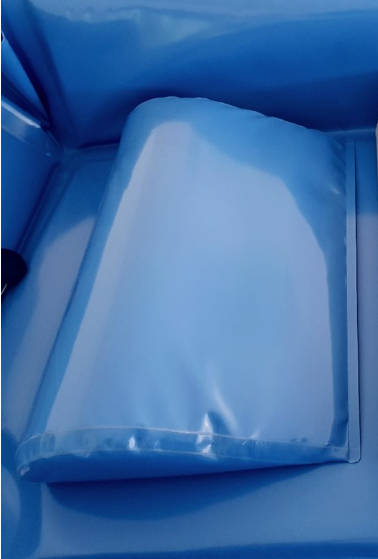

Backrest wedge pillow

Backrest wegde pillow available in 15° or 30°angle.
Use this pillow to incline the patients back for comfort and safety.



Accessories/Options

Fastners/straps for attachment on mattresses to side rails


Accessories/Options

Long flexible drainage hose, L = 2,5 m

Instead of standard L = 1 m



TR 4000 Atlas vs. TR 4200 Atlas Jr.
Shower trolleys for big size patients.

TR 4200 Bariatric Shower Trolley, multi tasking with endless possibilities.
