Shower trolley TR 3200
Versatile shower trolley offering unlimited possibilities for both patient and caregiver.
- Electric height adjustment
- Offset column for easier transfer
- Electric tilting in both directions
Product Description
Our battery-powered height-adjustable shower trolley is an excellent solution to help prevent back injuries and minimize static strain on the caregiver. It enables a safe and ergonomic working position for a better work environment.
The TR3200 shower trolley (maximum patient weight 230 kg / 500 lbs) is unique with its two side-mounted lifting columns, allowing for shorter and safer patient transfers.
The mattress features dual drains and a movable head cushion for easy transfer, regardless of the patient’s position.
The TR3200 is available in two sizes, and both versions come with either fixed or removable rechargeable batteries. Complete shower trolley compliant with IPX5.

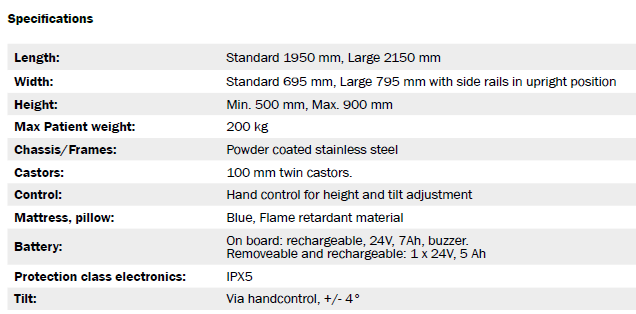

Functions and Specifications
- Maximum patient weight 230 kg / 500 lbs
- Proven battery solution
- Mattress with dual drains and movable head cushion for easy transfer, regardless of patient position
- 160 mm ground clearance
- Made of stainless steel
- Bumper wheels
- Twin castors
- Mattress and head cushion in blue
- Flexible drain hose, L = 1 m
For Caregivers
- Safe patient handling
- Height adjustable
- Side-mounted lifting columns
- Clean design and easy access
- Foldable side rails
- Stepless adjustment / tilting of lying surface
- Use with TR2810 Shower Panel
- Removable mattress
- Emergency stop
- Easy-to-use MagCode charger
For Patients
—
Options and Accessories
- Wedge cushion for back support
- Removable rechargeable battery
- Head cushion and mattress color
- Straight steering wheel
- Longer drain hose, 2.5 m
- Straps for securing the mattress to the side rails

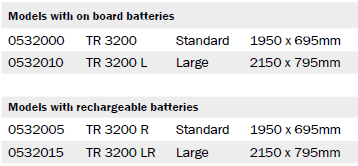

Models
All TR 3200 models comes delivered ready for use with a MagCode charger, mattress, head pillow, 4 braked castors and 1 m flexible drainage hose.
Documents and Manuals
Distributor documents
TR 3200 – Declaration of Conformity
TR 3200 Instruction for use – English
TR3200 – Service and Maintenance Manual incl. spare part list
Product Leaflet
